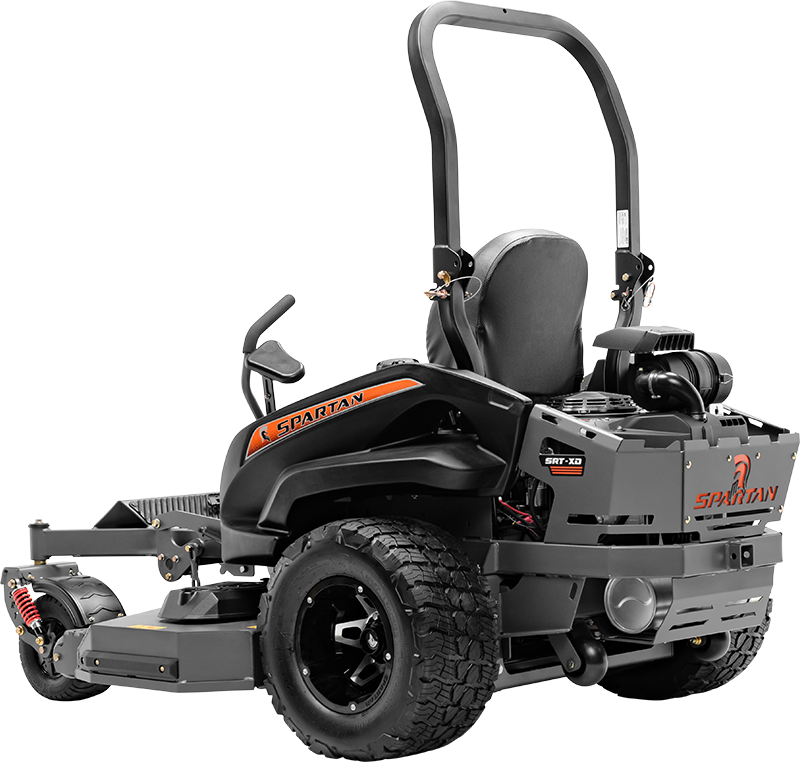

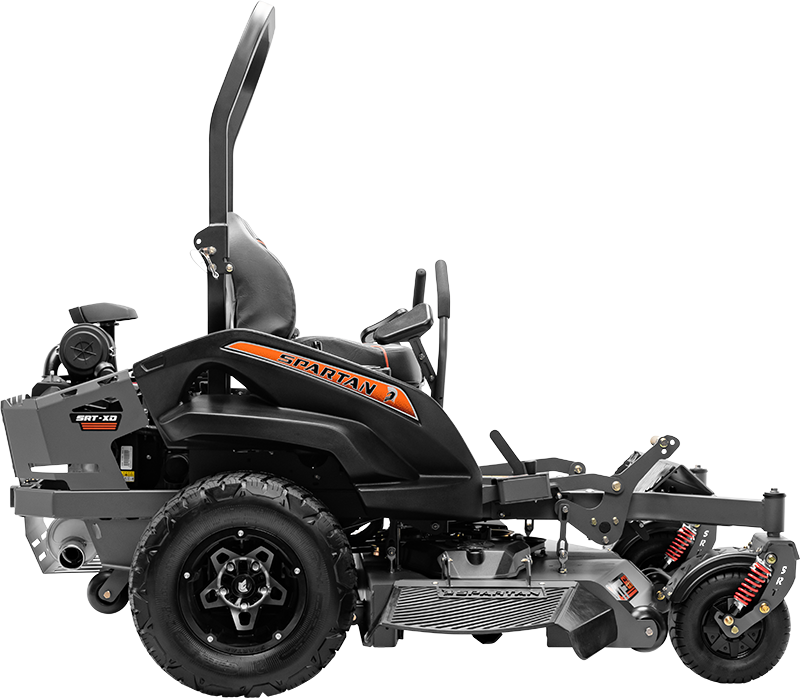

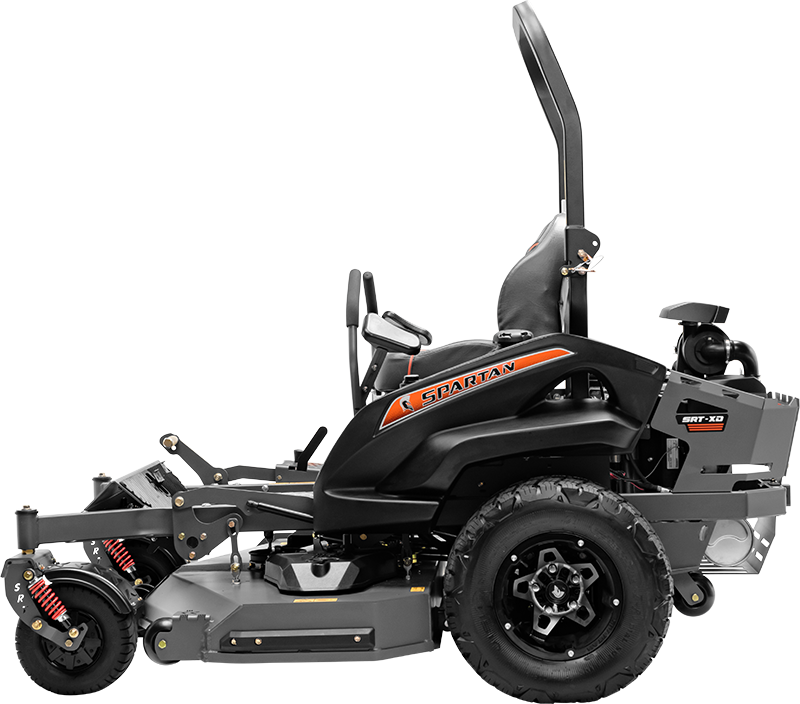

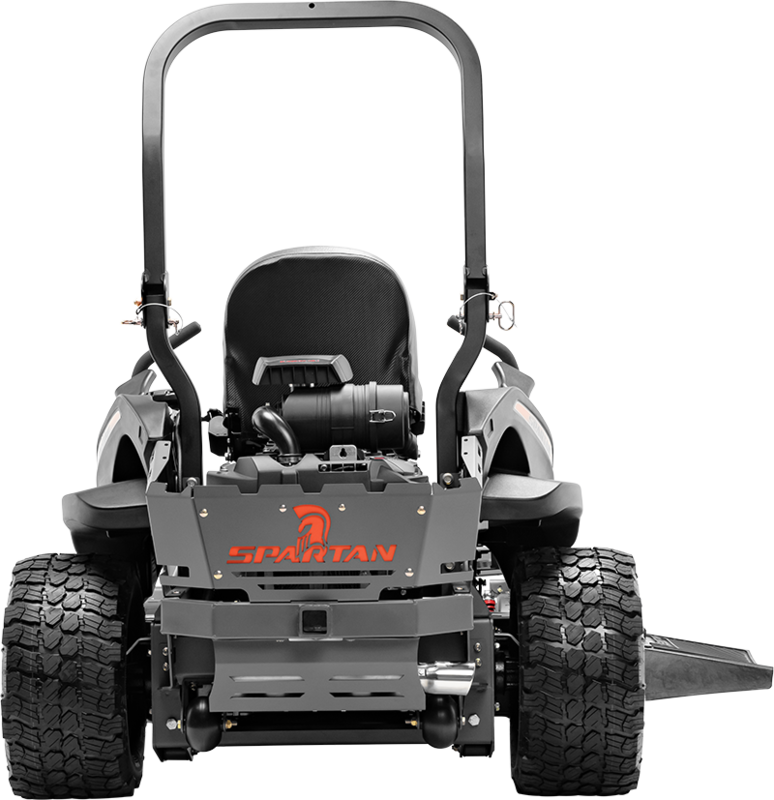

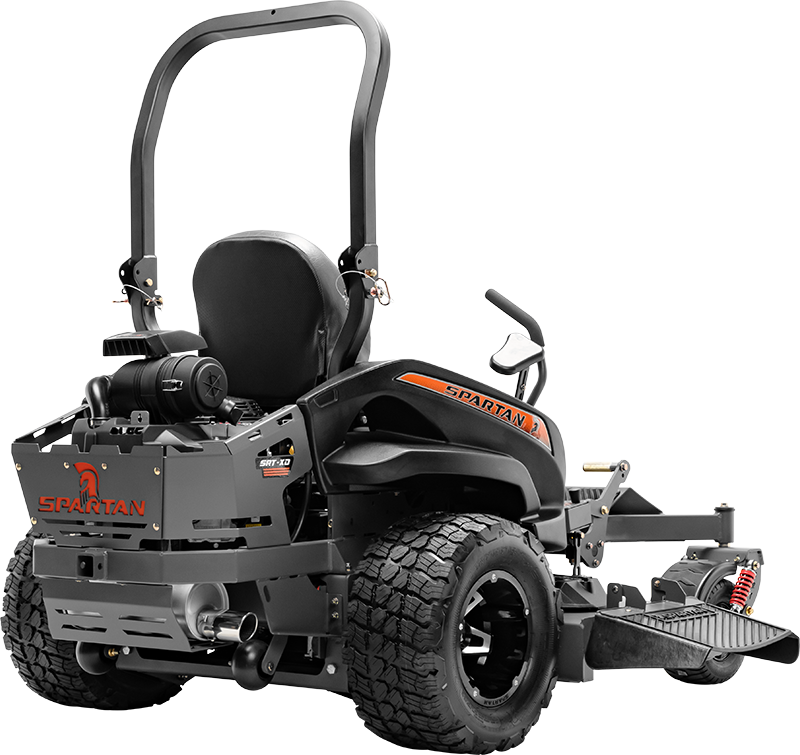

SRT-XD
Step it up a notch with maximum comfort and style—along with increased horsepower, 16cc Parker transmissions, and a top speed of 13 MPH.
Payments as low as:
$291/ mo
Starting at:
$14,629
- Deck Sizes: 61″ / 72″
- Horsepower: 38.5 / 40 HP
- Deck Height: 6″
- Top Speed: 13 MPH
- Fuel Capacity: 9.5 Gal
Specifications
Engine
Engine Name: Kawasaki FX1000E or Vanguard Big Block EFI/ETC
Horsepower: 38.5 HP or 40 HP
Fuel Capacity: 9.5 Gallons
Drive Line
Hydraulic Drive: Parker HTG Transaxles – 16cc Drive Motors
Hydraulic Drive Torque: Continuous – 498 ft-lb | Max Torque – 587 ft-lb
Hydraulic Drive Maintenance: 1000 Hours Between Oil Changes
Front Tires: 13×6.5-R6 Radial with Optional No Flats, or Tweels
Drive Tires: 61″ , 72″ – 24×14-R12 Radial
Wheel Type: Aluminum rear wheels and front hub covers
Speed (F/R): Forward – Up to 13mph | Reverse – Up to 5mph
Features
Acreage: 5+
Seat: Smart Ride Technology w/ full suspension seat – adjustable TecsPak Elastomer supports – 360 degree floating seat platform – indepentant rear frame section suspended by Winamac coil springs
Steering Levers: Soft-Touch Knobs to Adjust Forward and Back. Adjustable Up and Down
Control Panel LCD Display: N/A
Control Panel LED Warning Indicators: N/A
Ignition: Key Switch
Auxiliary Power: 12v Outlet Next to Phone Holder
Storage: Phone Holder, Cup Holder, and Deep Storage Tray
Hitch: 2″ Rear Receiver Standard
Cutting Deck
Deck Size: 61”, 72”
Deck Depth: 6″ Deep, Reinforced 7 Gauge Full-Floating Deck

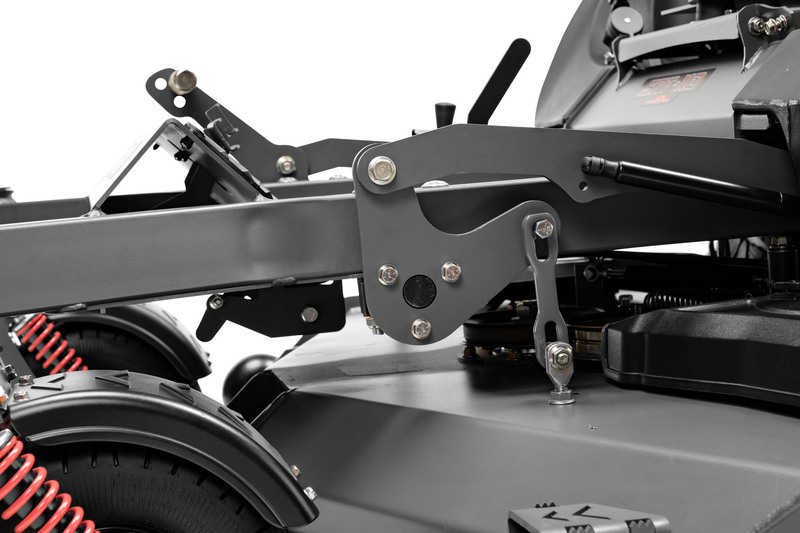

Deck Lift: Foot Operated with Shock Assist

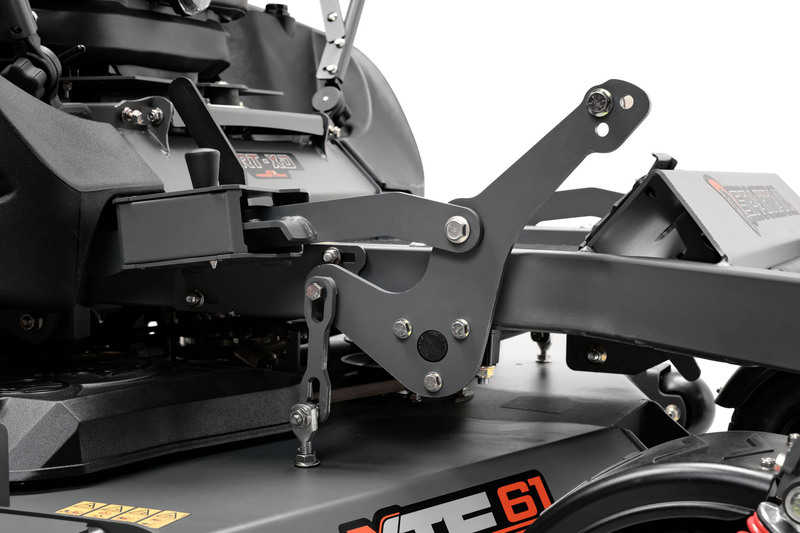

Deck Adjustment: Magnetic Pin Height Adjustment
Cut Height: 1″ to 5″ with 15 Cut Heights
Blade Spindles: Cast Aluminum, No Maintenance/Sealed Bearings
Parking Brake: Foot Operated
Frame: 1.5″ by 3″ Powder Coated Fusion-Bonded Solid Steel Bridge Frame
Measurements
Width: 61” cut – 62.5” wide | 72” cut – 73.5” wide
Weight: 61” – 1303lbs | 72” – 1336lbs
Length: 84”
Height: 75″ with ROPS Up – 54″ with Folding ROPS Down
Warranty
Full Warranty: 3 Year / 500 Hour Residential – 2 Year / Unlimited Hour Commercial – 120 Day Belt
Engine Warranty: 3 Year
Deck Warranty: Lifetime on Leading Edge
Hydraulic Drive Warranty: 3 Year / 1500 Hour
Control Panel Warranty: N/A
Advantages & Features
12V Outlet
Not only a place for your phone, but a way to charge it or to power other 12V items. *Standard on RZ-C models and up. Storage pocket not included on RZ models.
Hillside / Traction
Spartan Mowers has engineered superior technology that combines perfect balance with superb incline control for a smoother, safer ride. Take it on an incline and feel the difference. *Industry standard does not recommend mowing on inclines over 15 degrees.
7-Gauge Steel Decks
Defender models and up feature heavy-duty decks fabricated from 7-gauge steel. Check out the competition and see the difference for yourself.
HD Fusion Welded Frames
The frames on RZ-C models and up are constructed from heavy-duty 3″ x 1.5″ 11-gauge tube steel. Without a doubt, Spartan Mowers are built tough.
Spring Suspension
SRT models have rear traction enhancing custom Winamac spring suspension for better grip and a smoother ride. This allows the radial tires to follow the contour of the riding surface.
Enhanced XTF Deck System
Our Xtreme Turf Flow (XTF) decks have been redesigned and enhanced to meet the spring, summer, and fall mowing conditions everywhere. This enhanced deck system is available on all models from the Defender up.
High Quality Parts
Commercial-grade DNA is a key characteristic of Spartan Mowers, so our models feature the same heavy-duty components across the lineup.
Parking Brake Pedals
Another feature that helps you maintain control is the foot-controlled on and off parking brake, which allows you to keep both hands on the control levers. *Standard on the RZ, RT, SRT, and KGZ series.
U.S.A.
Defender models and up are made with U.S. and global parts at our facility in Batesville, Arkansas. We’re proud of our hardworking team and community.
Vibration Controlled Deck
Standard on all RZ-C models and up, the vibration controlled deck system with a one-piece idler puller and shock absorber eliminates belt whip and reduces vibration.
Design & Style
Our passion for muscle cars from the late ’60s has fueled the design of Spartan Mowers. Mow in style and turn heads with the stealthy profile of a Spartan.
Anti-Slip Mat
All models are equipped with a rubber anti-slip foot mat that helps reduce vibration from the transmission to the operator’s foot.
Resilient Bushings
Special resilient bushings on the mower stabilizing arms reduce the shock and damage to the mower if it hits curbs, stumps, or other debris.
EZ Debris Removal
To help keep your machine cleaner after each use, our belt covers are open in all directions for easy removal of accumulated debris.
All Features:
- 1 1/2″ x 3″ Tubular Welded Frame
- Magnetic Pin Height Adjustment
- Key Switch Panel
- Foot Operated Deck Lift
- Parker HTJ 12cc Transmission
- 6″ Deck Height
- 18,500 FPM Blade Tip Speed
- Protective Side Deck Trim
- GT Trac Stabilization
- Upgraded Spindles
- 12V Outlet
- Large Cup Holder
- Phone Holder in Console
- Storage Tray in Console
- Foot Operated Parking Brake
- Ultra-Premium Dymetrol® Adjustable 3″ Travel Seat
- Folding ROPS
- 7-gauge XTF Deck
- 2″ Receiver Hitch
- Front & Rear Radial Tires
- TecsPak® Under Seat
- Rear Spring Suspension
- Front Suspension Forks
- 3-year Warranty
- 9.5 gal Fuel Capacity
- 360-degree Seat Plate
- Adjustable Steering Arms
- Full Beam LED Light Bar
