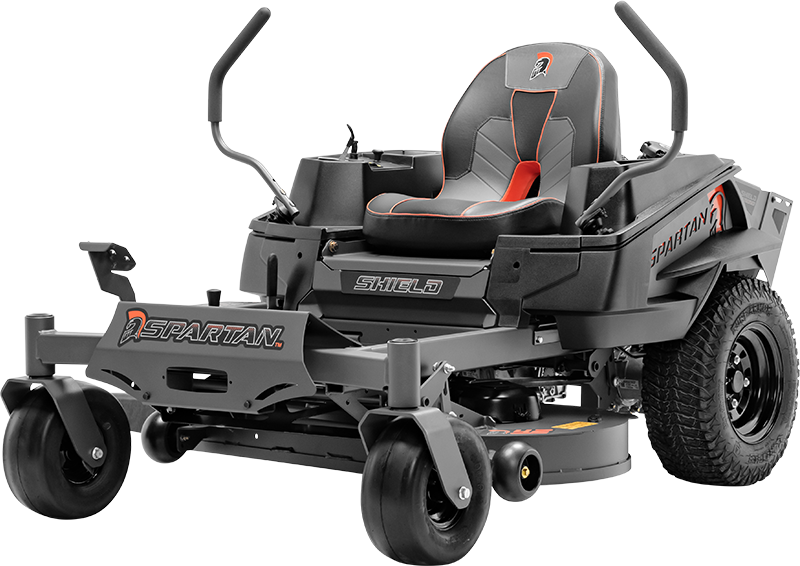

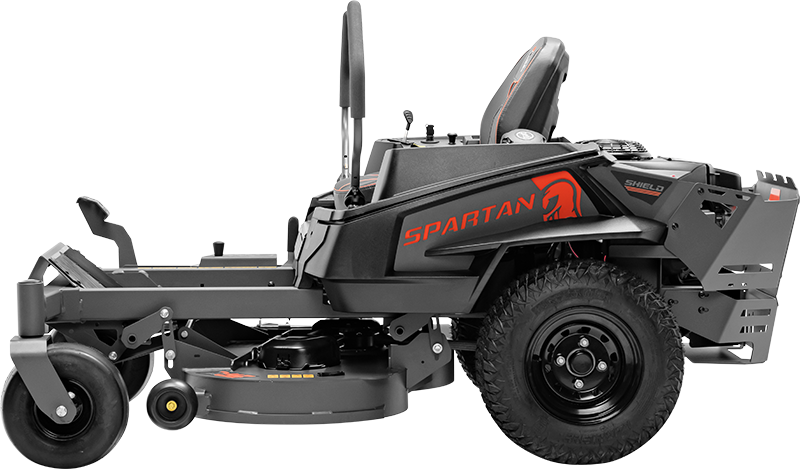

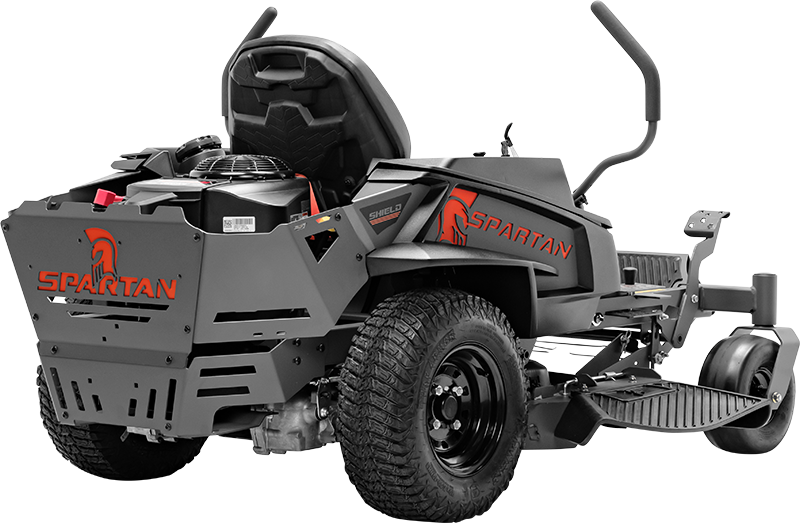

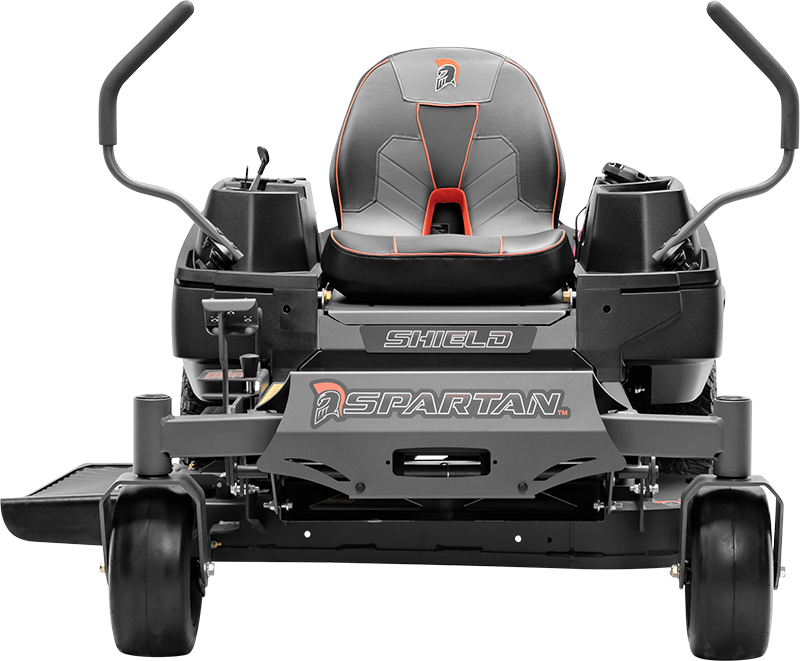

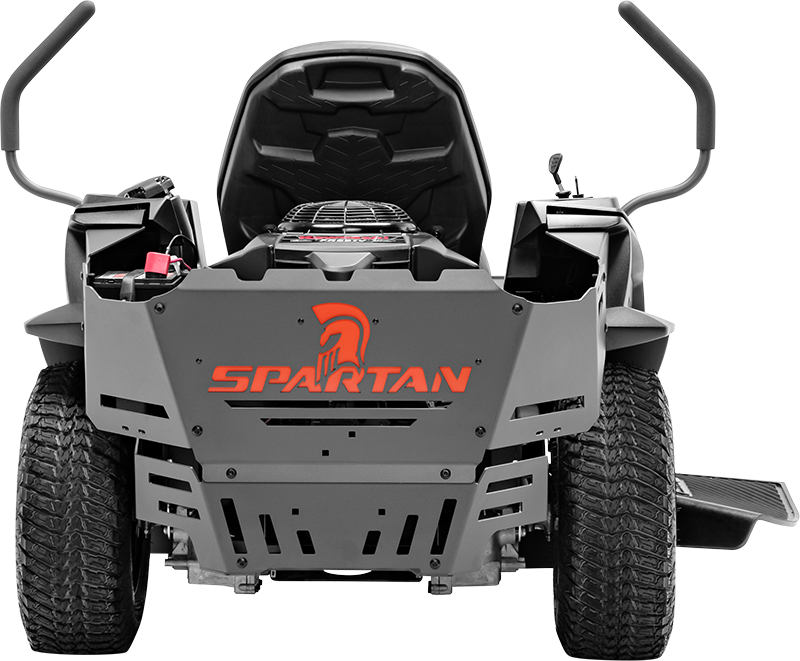

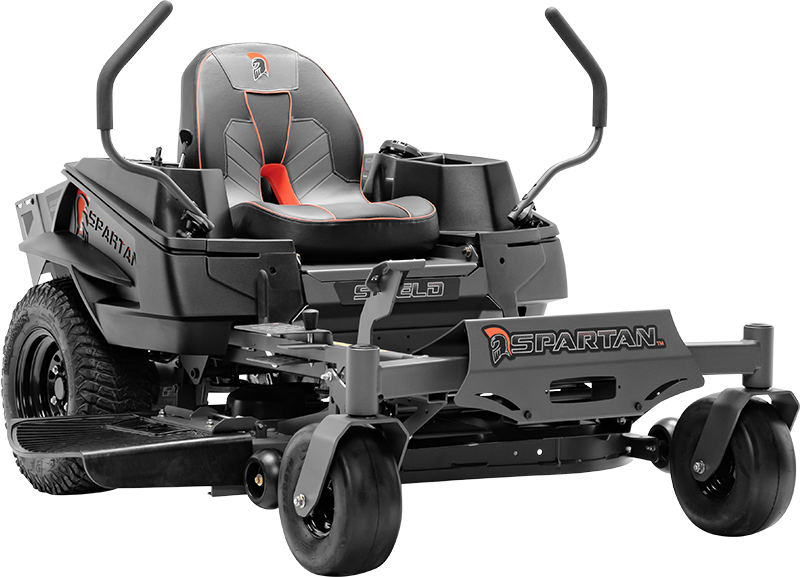

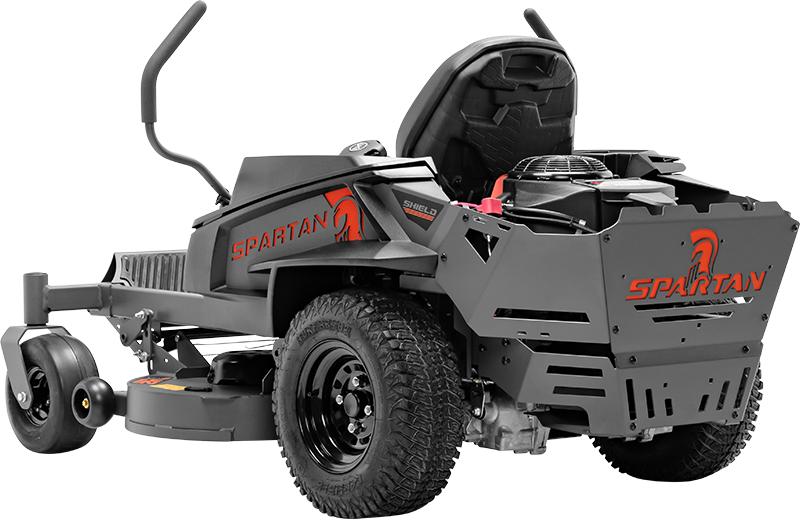

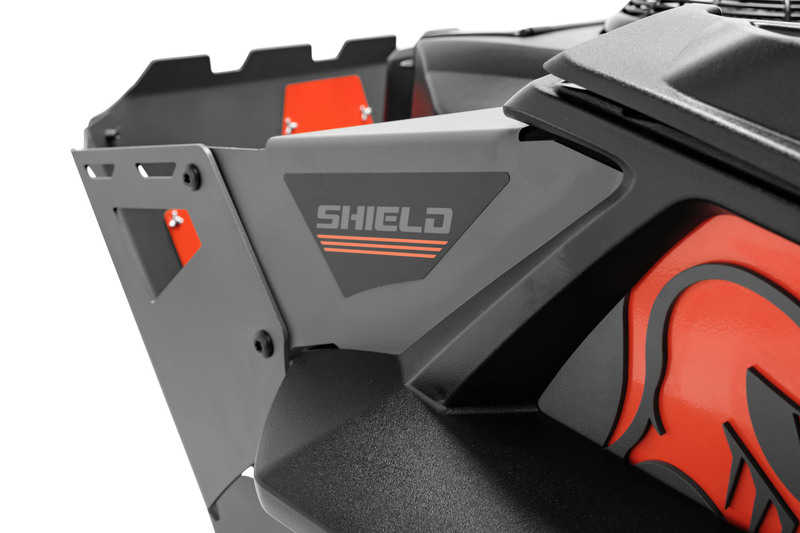

Shield
New to the lineup, the Shield is our most compact and budget-friendly unit to date, all without sacrificing durability, power, and performance.
Payments as low as:
$90 / mo
Starting at:
$4,399
- Deck Sizes: 42″ / 54″
- Horsepower: 23 HP
- Deck Height: 4
- Top Speed: 8 MPH
- Fuel Capacity: 5 Gal
Specifications
Engine

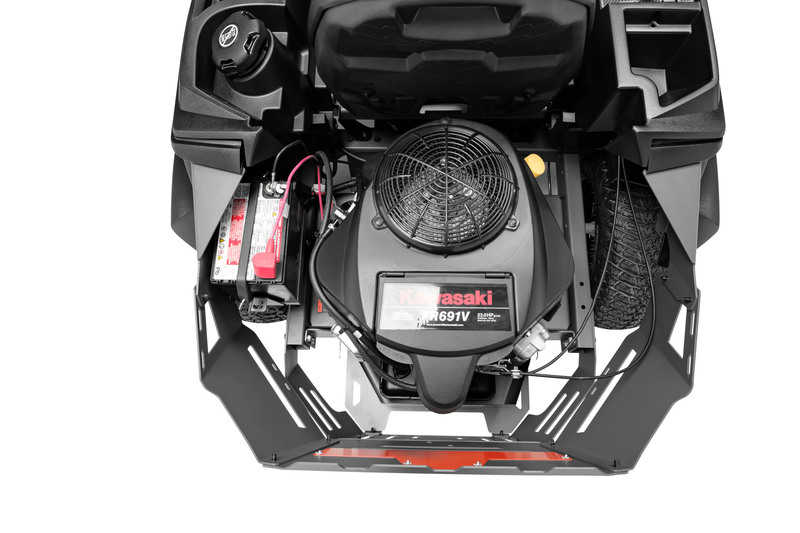

Engine Name: Kawasaki FR691
Horsepower: 23 HP
Fuel Capacity: 5 Gallons
Drive Line
Hydraulic Drive: Hydro-Gear ZT-2200
Front Tires: 12″ Bias Ply

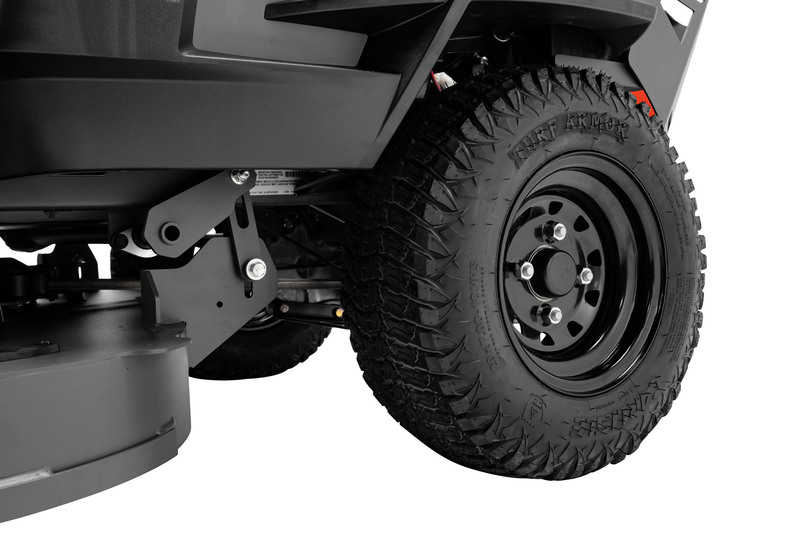

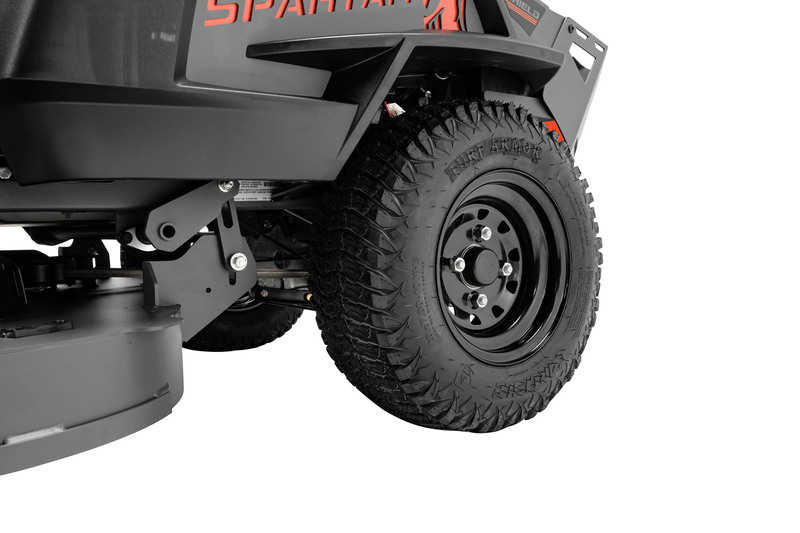

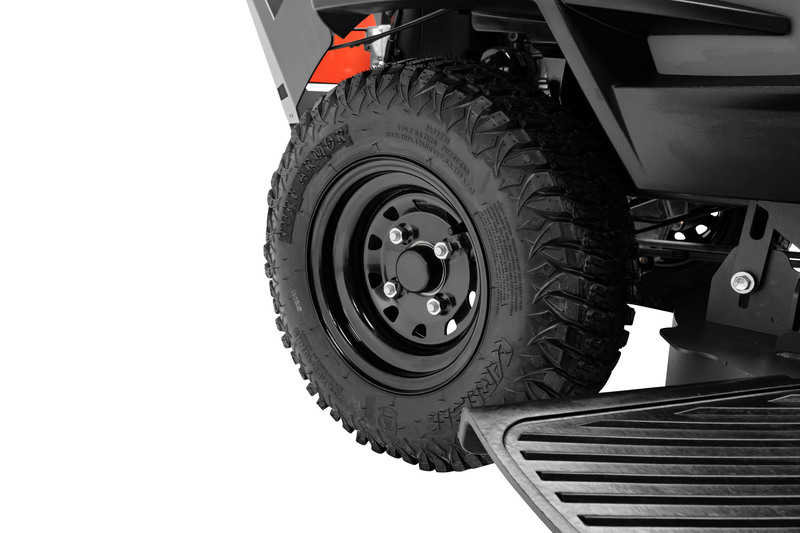

Drive Tires: 20″ Carlisle Turf Armor
Wheel Type: Steel
Speed (F/R): Forward – Up to 8mph Reverse – Up to 5mph
Features
Acreage: 3+

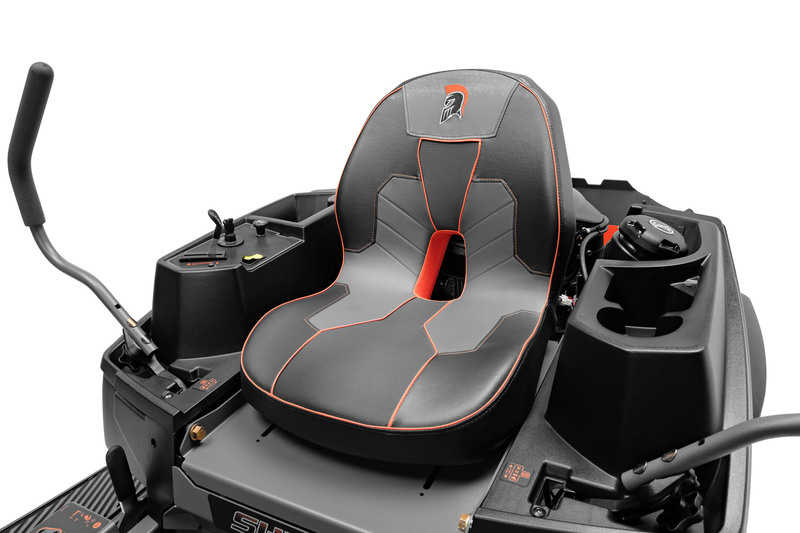

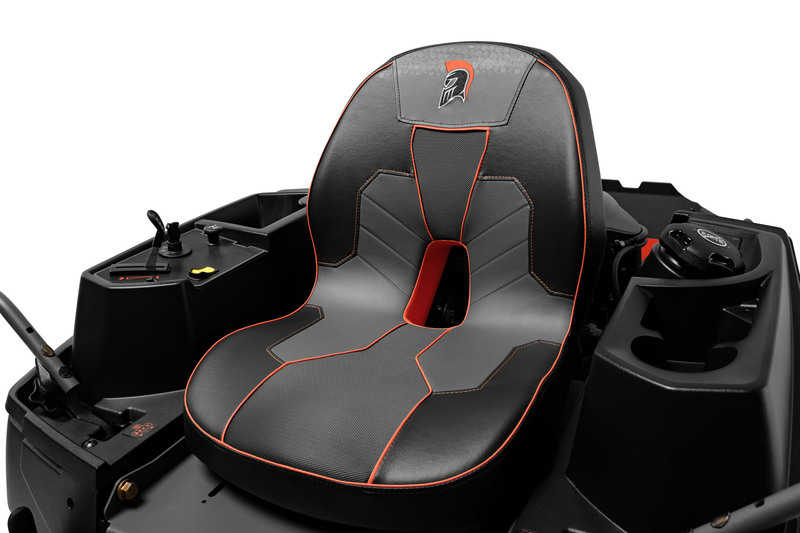

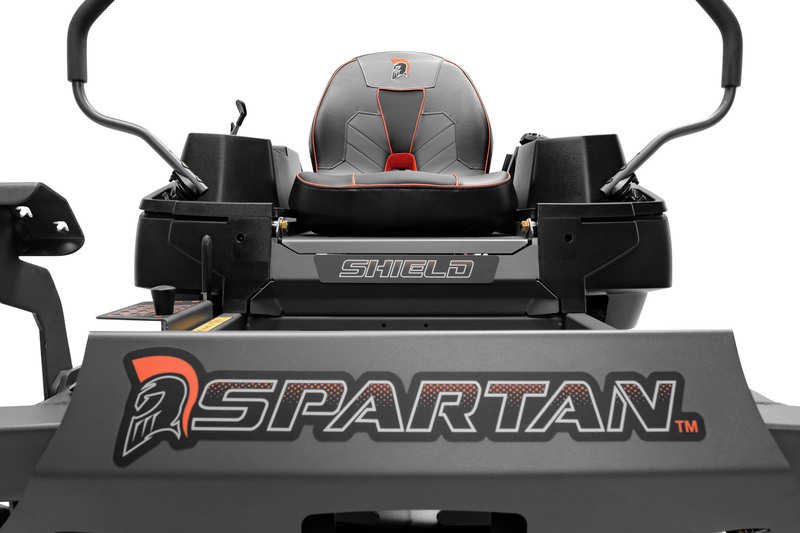

Seat: Comfortable, Custom Design
Steering Levers: Adjustable Up and Down
Control Panel LCD Display: N/A
Control Panel LED Warning Indicators: N/A
Ignition: Key Switch
Auxiliary Power: N/A
Storage: N/A
Hitch: N/A
Cutting Deck
Deck Size: 54″
Deck Depth: 4″
Deck Lift: Foot Operated
Deck Adjustment: Magnetic Pin Height Adjustment
Cut Height: 1″ to 4.25″ with 12 Cut Heights
Parking Brake: Automatic
Measurements
Width: 54″ Deck – 55.5″ Wide
Weight: 682 – 719 lbs
Length: 81″
Height: 44″
Warranty
Full Warranty: 3 Year – 120 Day Belt Warranty
Engine Warranty: 3 Year
Deck Warranty: Lifetime on Leading Edge
Hydraulic Drive Warranty: 3 Year / 200 Hour
Advantages & Features

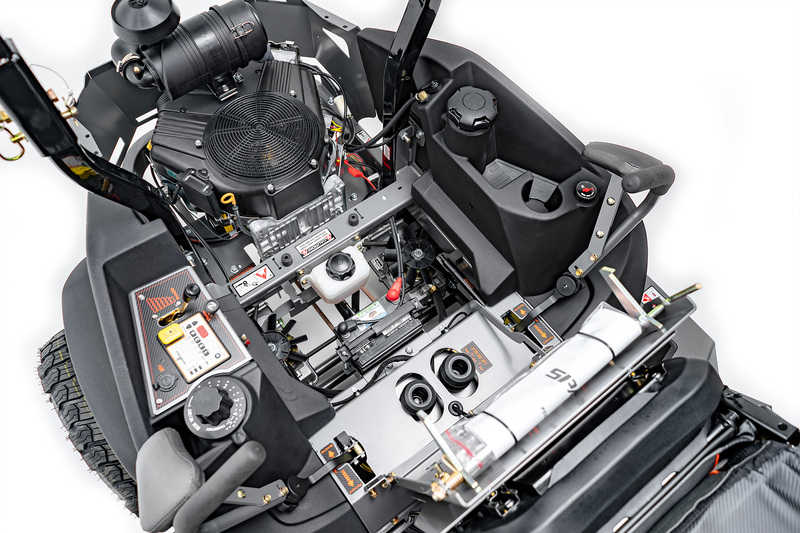

High Quality Parts
Commercial-grade DNA is a key characteristic of Spartan Mowers, so our models feature the same heavy-duty components across the lineup.

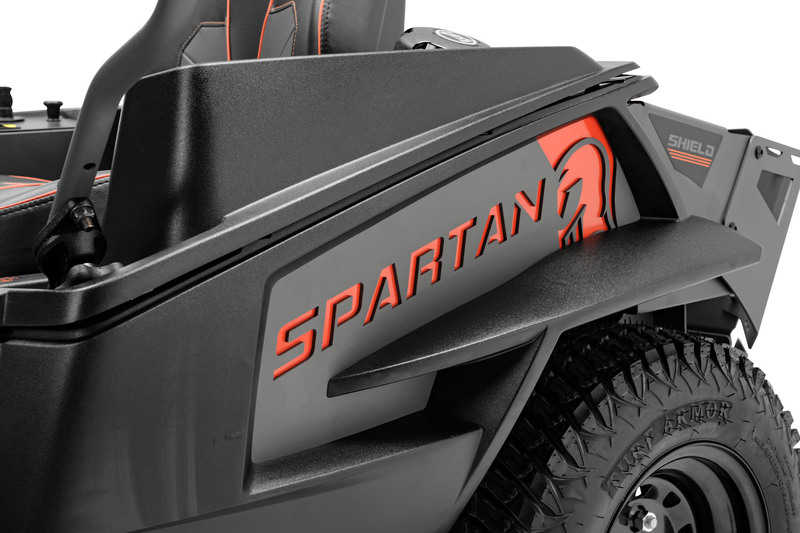

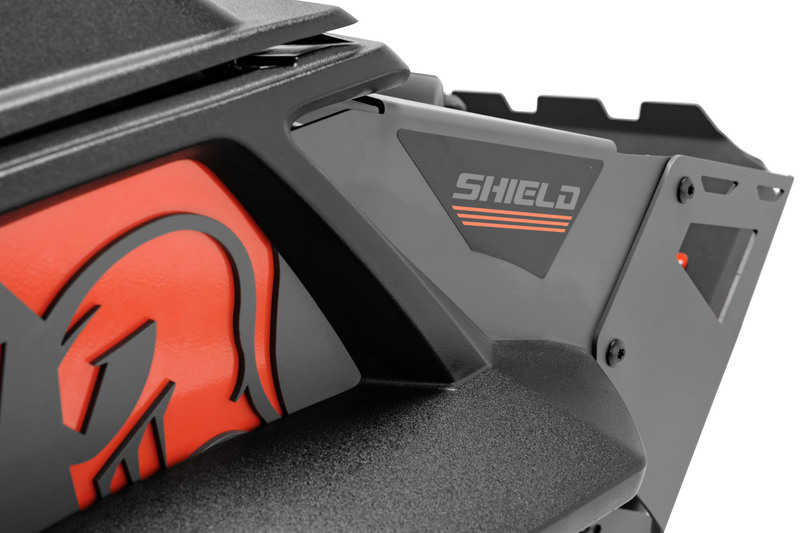

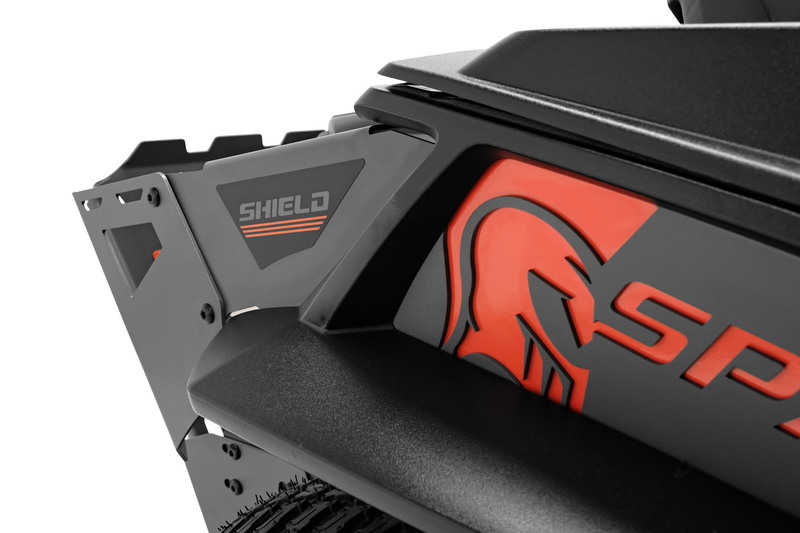

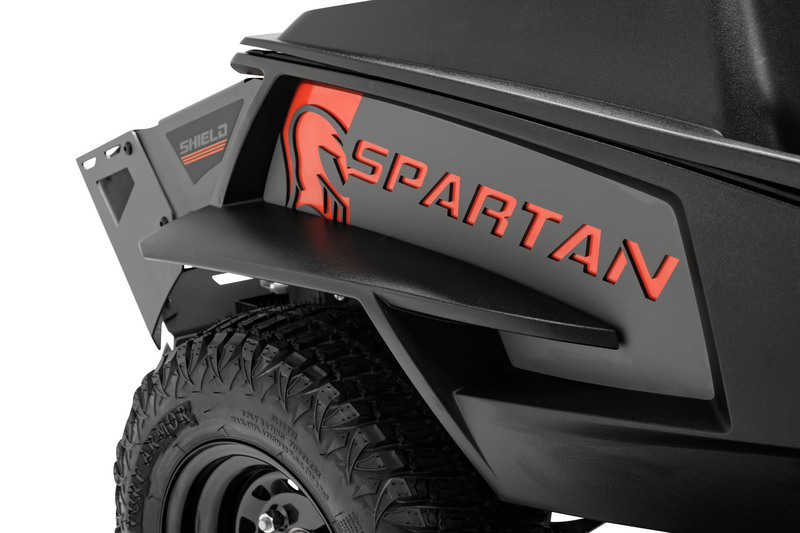

Design & Style
Our passion for muscle cars from the late ’60s has fueled the design of Spartan Mowers. Mow in style and turn heads with the stealthy profile of a Spartan.

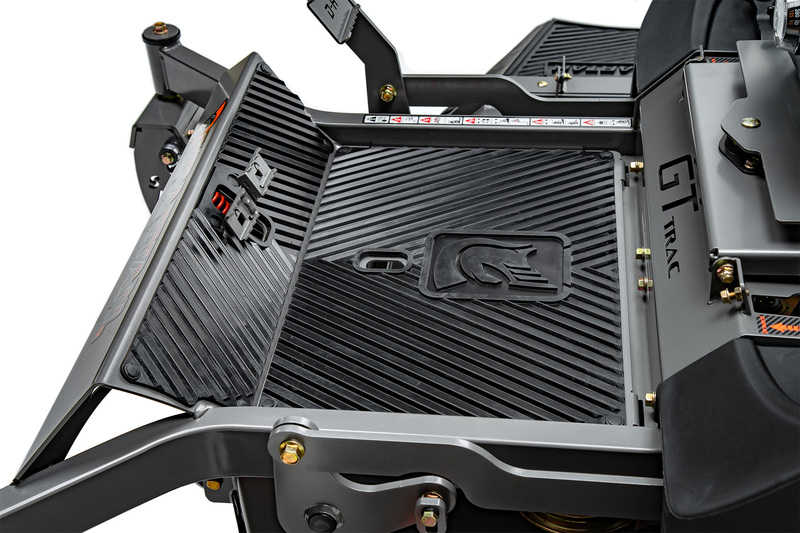

Anti-Slip Mat
All models are equipped with a rubber anti-slip foot mat that helps reduce vibration from the transmission to the operator’s foot.

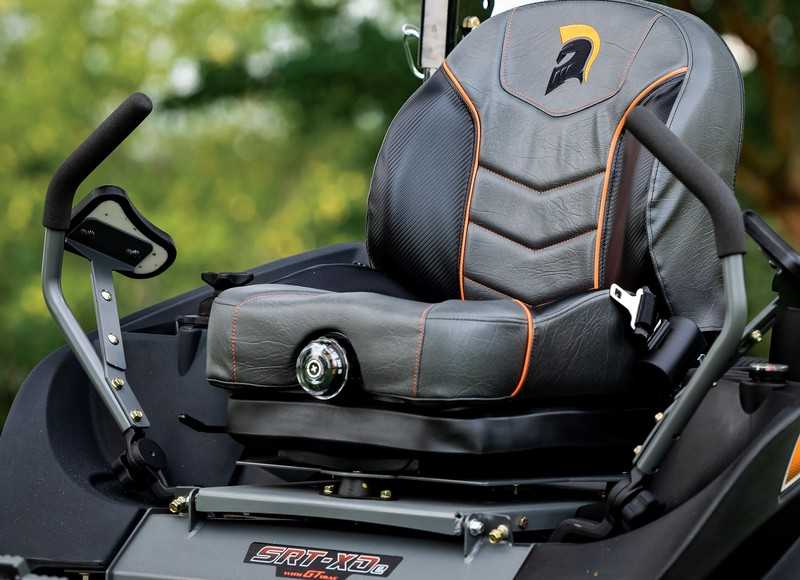

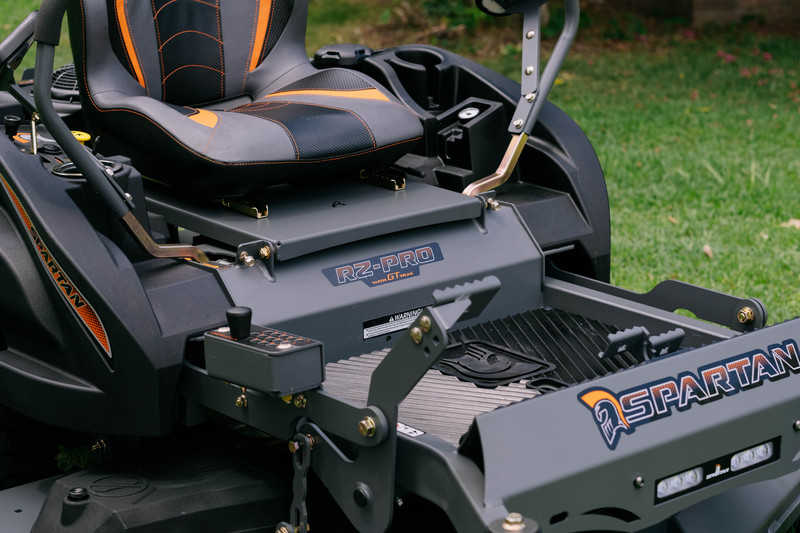

Adjustable Steering Arms
Adjustable steering arms add comfort for the best fit while mowing. *Standard on the RZ-HD Blackout and up. Available upgrade on the RZ-C, RZ, RZ-Pro, & RZ-HD.
All Features:
- 1 1/2″ x 3″ Tubular Welded Frame

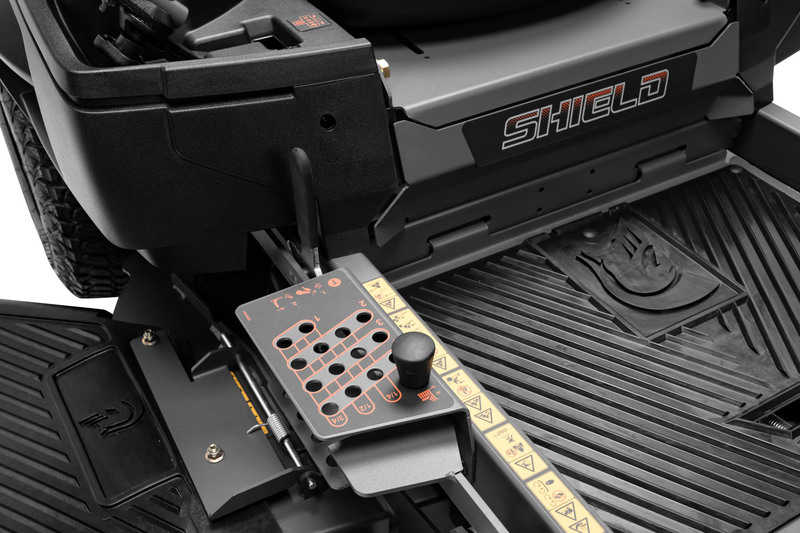

- Magnetic Pin Height Adjustment

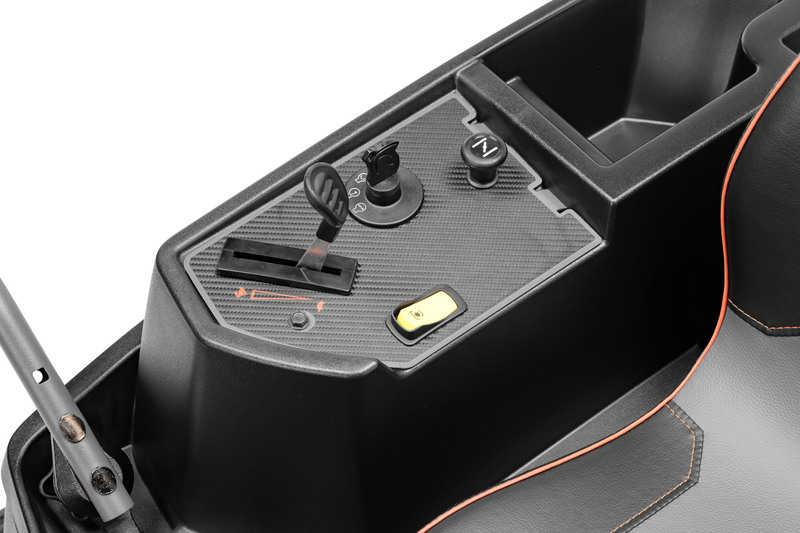

- Key Switch Panel
- Foot Operated Deck Lift
- Automatic Parking Brake
- Hydro-Gear ZT-2200 Transmission
- 5 gal Fuel Capacity
- 4″ Deck Height
- 3-year Warranty
- Adjustable Steering Arms
Call us today to order your mower or fill out the quick form on this page to have our sales rep reach out to you about your order.
