RZ-XD Blackout

Up your game with our redesigned RZ family, featuring a Kawi FX801 engine, 24-inch radial comfort tires, and a custom blackout design.

Payments as low as:

$208/ mo

Starting at:

$10,399

  • Deck Sizes: 54″ / 60″
  • Horsepower: 25.5 HP
  • Deck Height: 5
  • Top Speed: 9 MPH
  • Fuel Capacity: 9.5 Gal

Specifications

Engine

Horsepower: 25.5 HP
Fuel Capacity: 9.5 Gallons

Drive Line

Hydraulic Drive: Parker HTE Transaxles – 10cc Drive Motors
Hydraulic Drive Torque: Continuous – 262 ft-lb | Max – 406 ft-lb
Hydraulic Drive Maintenance: 1,000 Hours Between Oil Change
Front Tires: 13″ Bias Ply
Drive Tires: 24″ Radials
Wheel Type: Steel
Speed: Forward – Up to 9 mph | Reverse – Up to 5 mph

Features

Acreage: 2+
Seat: Blackout Dymetrol Seat with 360° Floating Seat Platform
Steering Levers: Adjustable Up and Down
Ignition: Key Switch
Auxiliary Power: 12v Outlet
Storage: Phone Holder, Cup Holder, Deep Storage Tray

Cutting Deck

Deck Size: 54″ or 60″
Deck Depth: 5″ Deep, Reinforced 7-Gauge Full-Floating Deck
Deck Lift: Foot Operated with Shock Assist
Deck Adjustment: Magnetic Pin Height Adjustment
Cut Height: 1″ to 5″ (15 Height Settings)
Blade Spindles: Cast Aluminum, No Maintenance / Sealed Bearings
Parking Brake: Foot Operated
Frame: 1.5″ x 3″ Powder-Coated Fusion-Bonded Solid Steel Bridge Frame

Measurements

Width: 55.5” – 62.5” (Deck Dependent)
Weight: 907 – 1,095 lbs
Length: 84″
Height: 75″ with ROPS Up | 54″ with ROPS Down

Warranty

Full Warranty: 3 Year / 400 Hour – 120 Day Belt Warranty
Engine Warranty: 3 Year
Deck Warranty: Lifetime on Leading Edge
Hydraulic Drive Warranty: 3 Year / 750 Hour
Control Panel Warranty: Not Specified or 3 Year (varies by model)

Advantages & Features

12V Outlet

Not only a place for your phone, but a way to charge it or to power other 12V items. *Standard on RZ-C models and up. Storage pocket not included on RZ models.

Hillside / Traction

Spartan Mowers has engineered superior technology that combines perfect balance with superb incline control for a smoother, safer ride. Take it on an incline and feel the difference. *Industry standard does not recommend mowing on inclines over 15 degrees.

7-Gauge Steel Decks

Defender models and up feature heavy-duty decks fabricated from 7-gauge steel. Check out the competition and see the difference for yourself.

HD Fusion Welded Frames

The frames on RZ-C models and up are constructed from heavy-duty 3″ x 1.5″ 11-gauge tube steel. Without a doubt, Spartan Mowers are built tough.

U.S.A.

Defender models and up are made with U.S. and global parts at our facility in Batesville, Arkansas. We’re proud of our hardworking team and community.

Enhanced XTF Deck System

Our Xtreme Turf Flow (XTF) decks have been redesigned and enhanced to meet the spring, summer, and fall mowing conditions everywhere. This enhanced deck system is available on all models from the Defender up.

High Quality Parts

Commercial-grade DNA is a key characteristic of Spartan Mowers, so our models feature the same heavy-duty components across the lineup.

Parking Brake Pedals

Another feature that helps you maintain control is the foot-controlled on and off parking brake, which allows you to keep both hands on the control levers. *Standard on the RZ, RT, SRT, and KGZ series.

LED Light Kits

Mounted directly to the front of the mower, an LED light bar is great for finishing up at dusk and lighting the way to your trailer or shed. Light bars are standard on Spartan’s RZ-HD Blackout, RT-HD, SRT series, KG-XD, and KGZ-XD models. *Available upgrade on RZ-C, RZ, RZ-Pro, and RZ-HD.

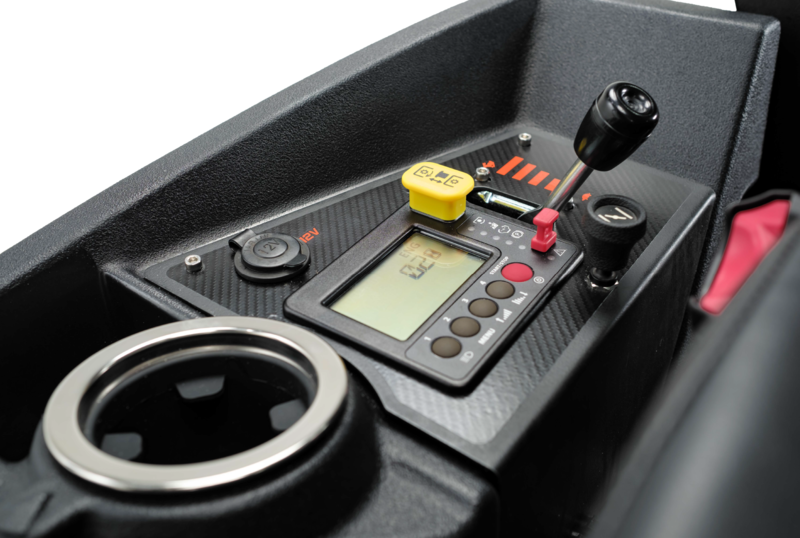

Key Switch Panel

Our key pad makes forgetting your key impossible. With features like a personalized code, engine hours, PTO clutch hours, and oil change life, it’s your mower’s personal assistant! *Upgrade available on RZ-HD Blackout, KGZ-XD, and KG series.

Vibration Controlled Deck

Standard on all RZ-C models and up, the vibration controlled deck system with a one-piece idler puller and shock absorber eliminates belt whip and reduces vibration.

Design & Style

Our passion for muscle cars from the late ’60s has fueled the design of Spartan Mowers. Mow in style and turn heads with the stealthy profile of a Spartan.

Anti-Slip Mat

All models are equipped with a rubber anti-slip foot mat that helps reduce vibration from the transmission to the operator’s foot.

Resilient Bushings

Special resilient bushings on the mower stabilizing arms reduce the shock and damage to the mower if it hits curbs, stumps, or other debris.

EZ Debris Removal

To help keep your machine cleaner after each use, our belt covers are open in all directions for easy removal of accumulated debris.

Adjustable Steering Arms

Adjustable steering arms add comfort for the best fit while mowing. *Standard on the RZ-HD Blackout and up. Available upgrade on the RZ-C, RZ, RZ-Pro, & RZ-HD.

All Features:

  • Versa Guard Personalized Control Panels
  • 1 1/2″ x 3″ Tubular Welded Frame
  • Magnetic Pin Height Adjustment
  • Key Switch Panel
  • Foot Operated Deck Lift
  • 5″ Deck Height
  • 18,500 FPM Blade Tip Speed
  • Protective Side Deck Trim
  • GT Trac Stabilization
  • Upgraded Spindles
  • 12V Outlet
  • Large Cup Holder
  • Phone Holder in Console
  • Storage Tray in Console
  • Foot Operated Parking Brake
  • Ultra-Premium Dymetrol® Adjustable 3″ Travel Seat
  • Folding ROPS
  • 7-gauge XTF Deck
  • Multi-Function Keypad with Soft Start
  • 3-year Warranty
  • Parker HTE 10cc Transmission
  • 9.5 gal Fuel Capacity
  • 360-degree Seat Plate
  • Adjustable Steering Arms
  • Full Beam LED Light Bar
