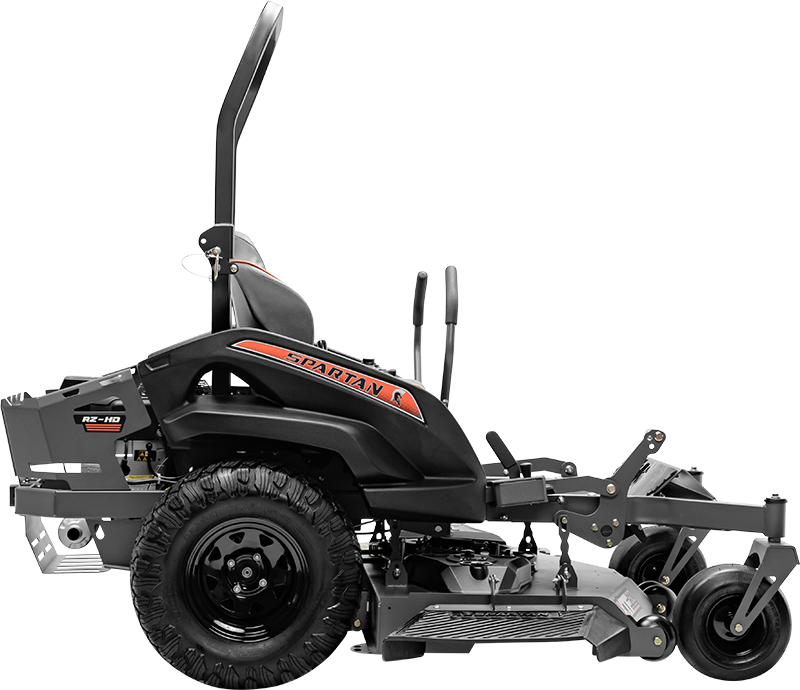

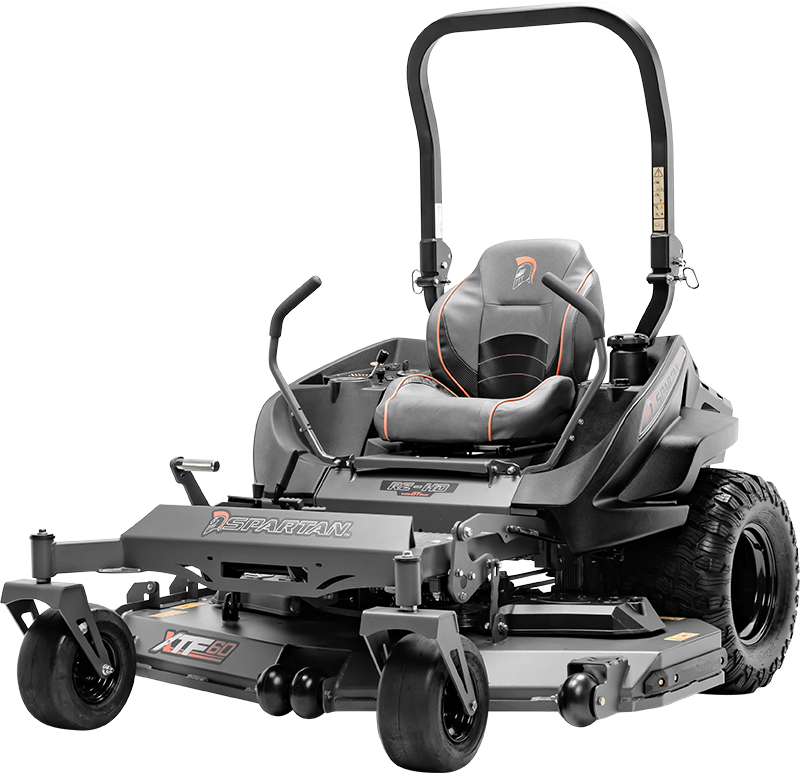

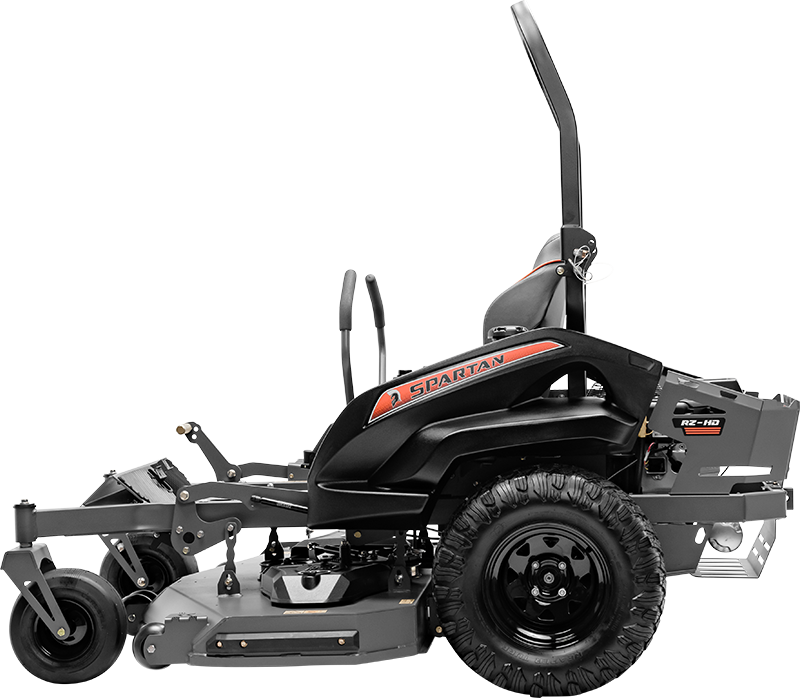

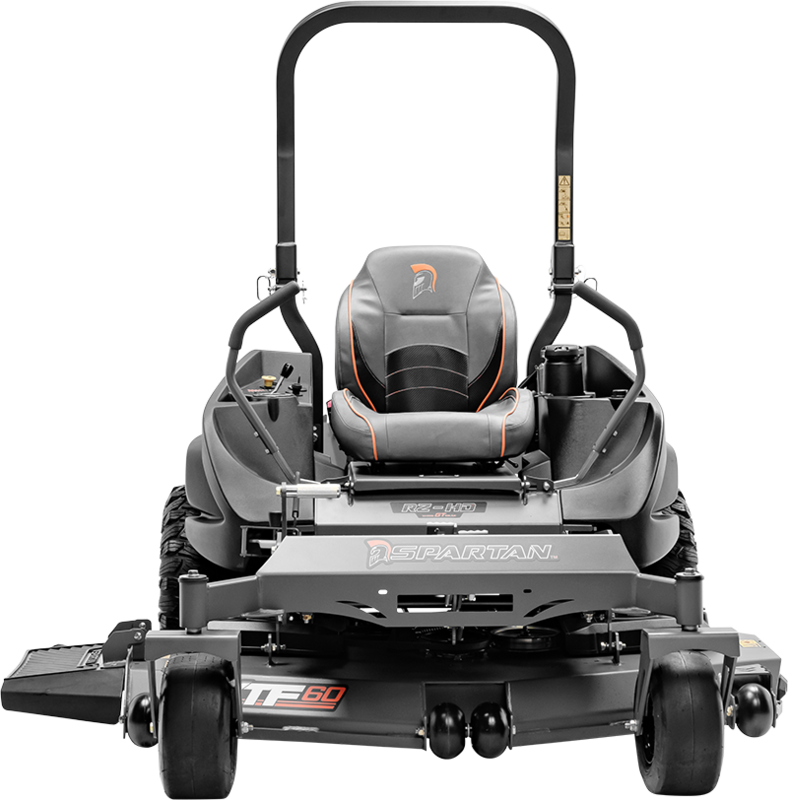

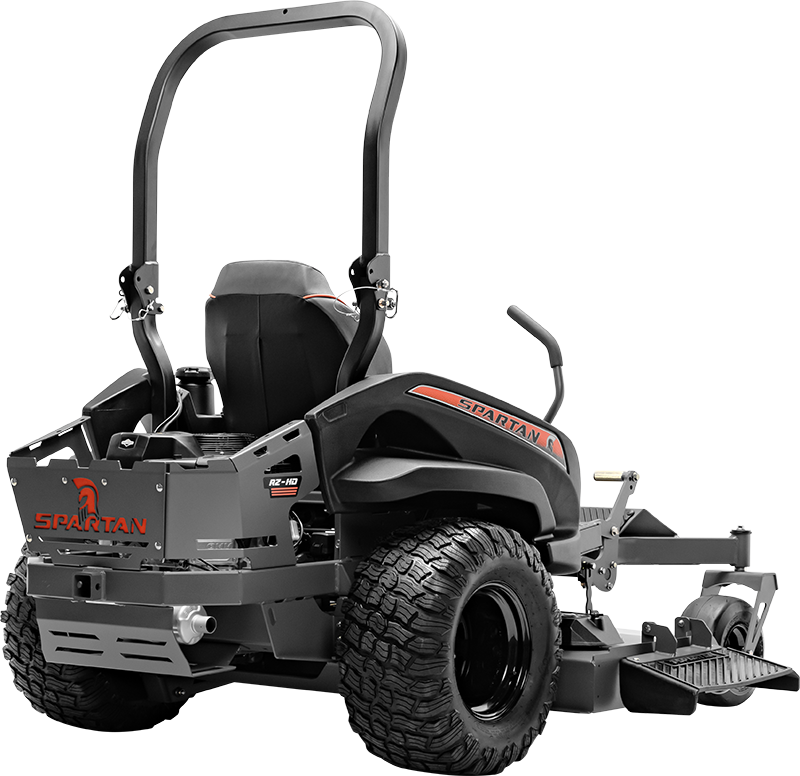

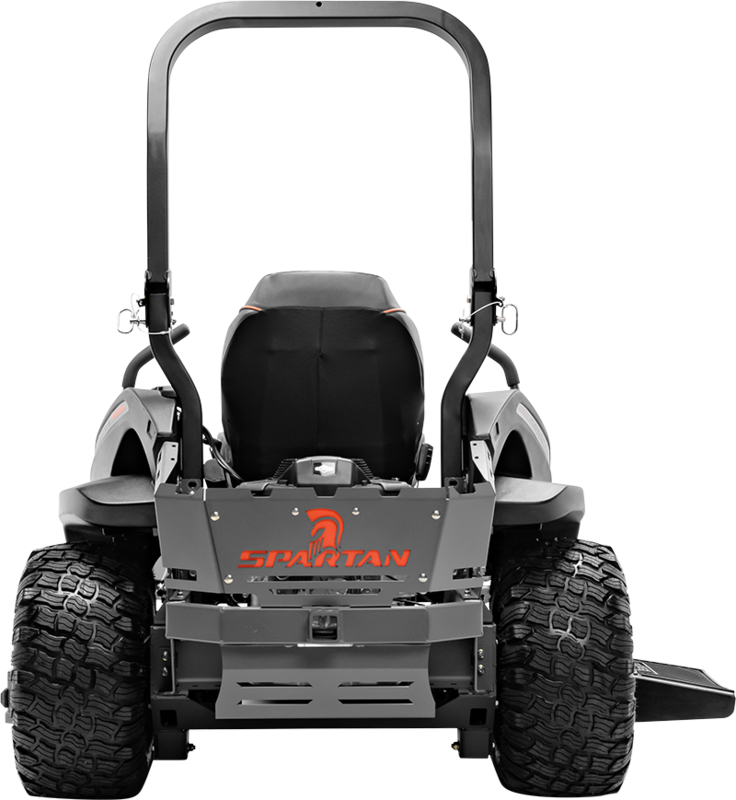

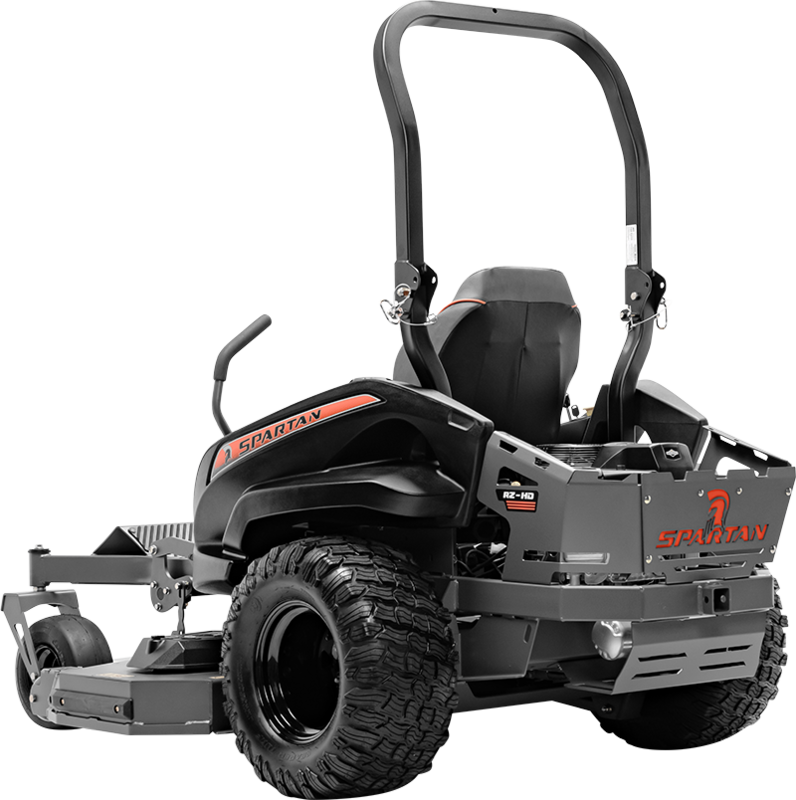

RZ-HD
As our historically best-selling unit, the RZ-HD provides plenty of power, three convenient deck sizes, Parker hydros, and rear radial tires.
Payments as low as:
$148/ mo
Starting at:
$7,369
- Deck Sizes: 48″ / 54″ / 60″
- Horsepower: 24 / 27 HP
- Deck Height: 5
- Top Speed: 9 MPH
- Fuel Capacity: 9.5 Gal
Specifications
Engine
Horsepower: 24 – 27 HP
Fuel Capacity: 9.5 Gallons
Drive Line
Hydraulic Drive: Parker HTE Transaxles – 10cc Drive Motors
Hydraulic Drive Torque: Continuous – 262 ft-lb | Max – 406 ft-lb
Hydraulic Drive Maintenance: 1,000 Hours Between Oil Change
Front Tires: 13×6.5-R6 Smooth Tread (Optional Radial Upgrade)
Drive Tires: 23″ Reapers
Wheel Type: Steel
Speed: Forward – Up to 9 mph | Reverse – Up to 5 mph
Features
Acreage: 2+

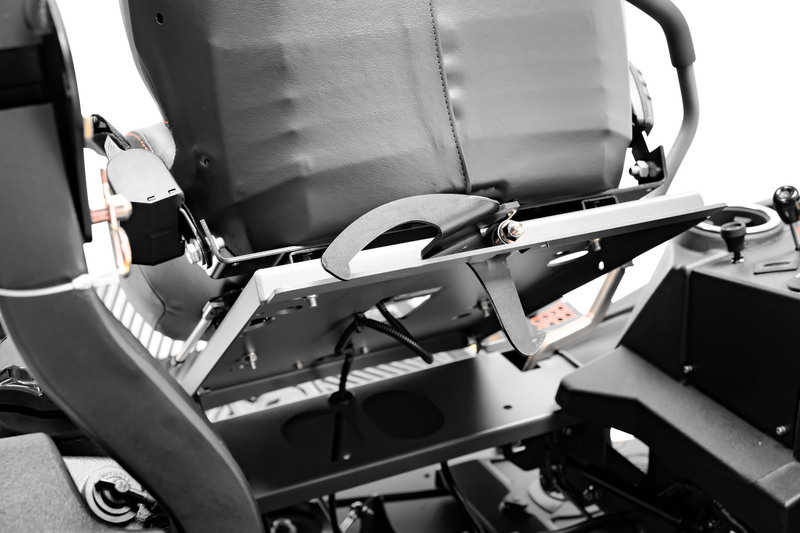

Seat: 360° Floating Seat Platform
Steering Levers: Adjustable Up and Down
Control Panel LCD Display: N/A
Control Panel LED Indicators: N/A
Ignition: Key Switch
Auxiliary Power: 12v Outlet
Storage: Phone Holder, Cup Holder, Deep Storage Tray
Hitch: N/A
Cutting Deck
Deck Size: 48″, 54″, or 60″
Deck Depth: 5″ Deep, Reinforced 7-Gauge Full-Floating Deck
Deck Lift: Foot Operated with Shock Assist
Deck Adjustment: Magnetic Pin Height Adjustment
Cut Height: 1″ to 5″ (15 Height Settings)
Blade Spindles: Cast Aluminum, No Maintenance / Sealed Bearings
Parking Brake: Foot Operated
Frame: 1.5″ x 3″ Powder-Coated Fusion-Bonded Solid Steel Bridge Frame
Measurements
Width: 49.5” – 62.5” (Deck Size Dependent)
Weight: 907 – 1,095 lbs
Length: 84″
Height: 75″ with ROPS Up | 54″ with ROPS Down
Warranty
Full Warranty: 3 Year / 400 Hour – 120 Day Belt Warranty
Engine Warranty: 3 Year
Deck Warranty: Lifetime on Leading Edge
Hydraulic Drive Warranty: 3 Year / 750 Hour
Control Panel Warranty: N/A
Advantages & Features
12V Outlet
Not only a place for your phone, but a way to charge it or to power other 12V items. *Standard on RZ-C models and up. Storage pocket not included on RZ models.
Hillside / Traction
Spartan Mowers has engineered superior technology that combines perfect balance with superb incline control for a smoother, safer ride. Take it on an incline and feel the difference. *Industry standard does not recommend mowing on inclines over 15 degrees.
7-Gauge Steel Decks
Defender models and up feature heavy-duty decks fabricated from 7-gauge steel. Check out the competition and see the difference for yourself.
HD Fusion Welded Frames
The frames on RZ-C models and up are constructed from heavy-duty 3″ x 1.5″ 11-gauge tube steel. Without a doubt, Spartan Mowers are built tough.
Enhanced XTF Deck System
Our Xtreme Turf Flow (XTF) decks have been redesigned and enhanced to meet the spring, summer, and fall mowing conditions everywhere. This enhanced deck system is available on all models from the Defender up.
High Quality Parts
Commercial-grade DNA is a key characteristic of Spartan Mowers, so our models feature the same heavy-duty components across the lineup.
Parking Brake Pedals
Another feature that helps you maintain control is the foot-controlled on and off parking brake, which allows you to keep both hands on the control levers. *Standard on the RZ, RT, SRT, and KGZ series.
U.S.A.
Defender models and up are made with U.S. and global parts at our facility in Batesville, Arkansas. We’re proud of our hardworking team and community.
Vibration Controlled Deck
Standard on all RZ-C models and up, the vibration controlled deck system with a one-piece idler puller and shock absorber eliminates belt whip and reduces vibration.
Design & Style
Our passion for muscle cars from the late ’60s has fueled the design of Spartan Mowers. Mow in style and turn heads with the stealthy profile of a Spartan.
Anti-Slip Mat
All models are equipped with a rubber anti-slip foot mat that helps reduce vibration from the transmission to the operator’s foot.
Resilient Bushings
Special resilient bushings on the mower stabilizing arms reduce the shock and damage to the mower if it hits curbs, stumps, or other debris.
EZ Debris Removal
To help keep your machine cleaner after each use, our belt covers are open in all directions for easy removal of accumulated debris.
All Features:
- Versa Guard Personalized Control Panels
- 1 1/2″ x 3″ Tubular Welded Frame
- Magnetic Pin Height Adjustment
- Key Switch Panel
- Foot Operated Deck Lift
- 5″ Deck Height
- 18,500 FPM Blade Tip Speed
- Protective Side Deck Trim
- GT Trac Stabilization
- Upgraded Spindles
- 12V Outlet
- Large Cup Holder
- Phone Holder in Console
- Storage Tray in Console
- Foot Operated Parking Brake
- Folding ROPS
- 7-gauge XTF Deck
- 3-year Warranty
