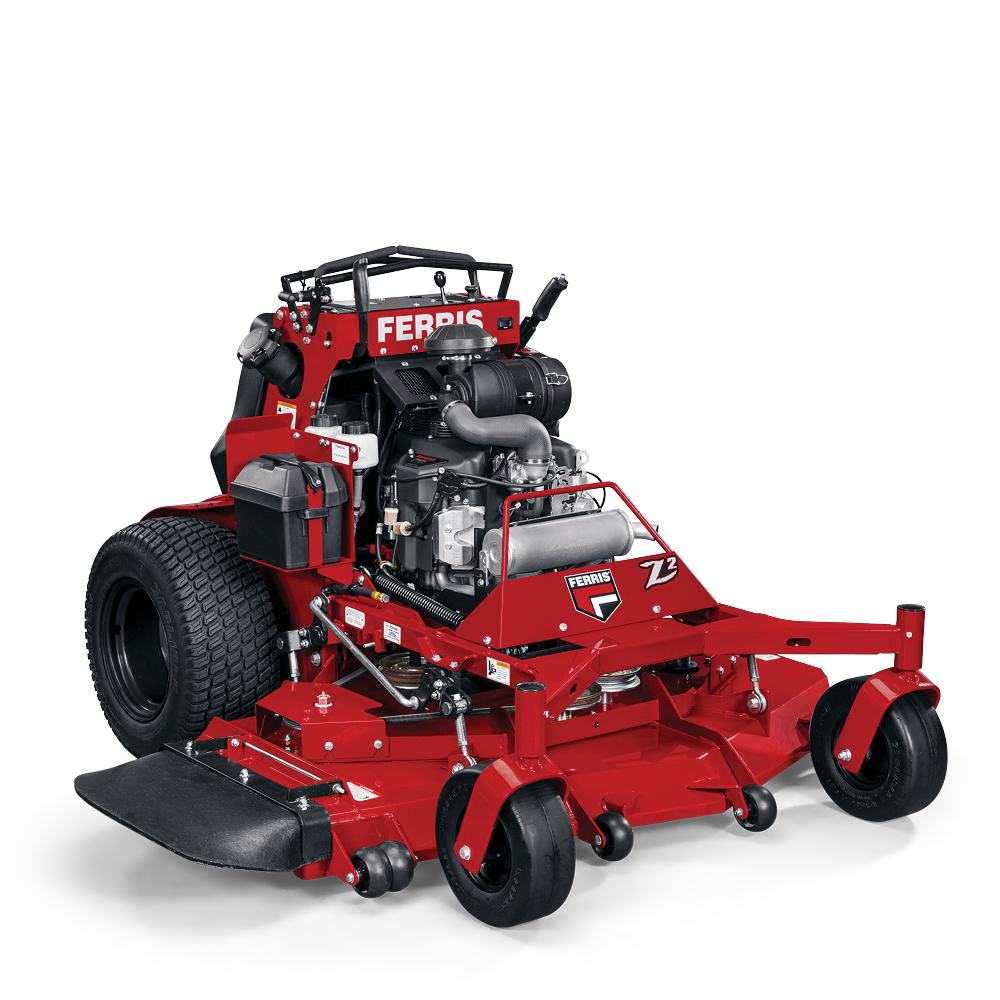

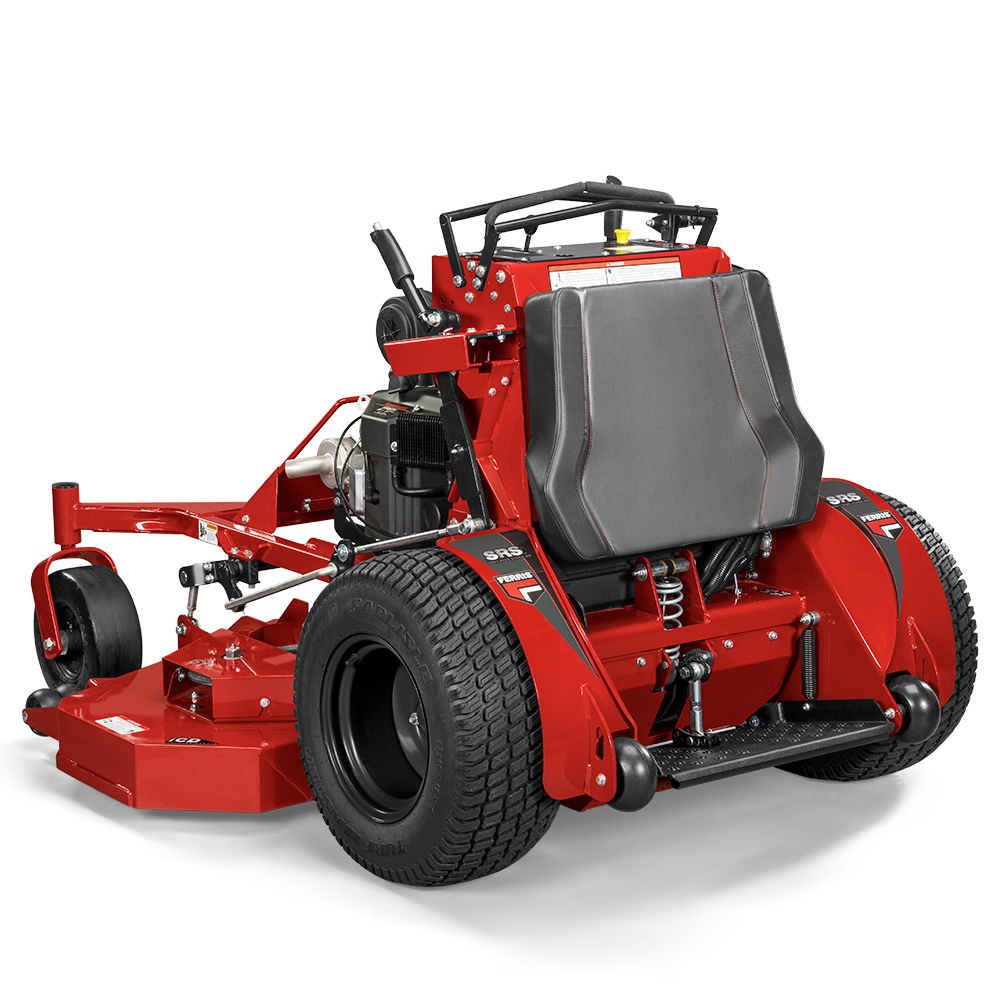

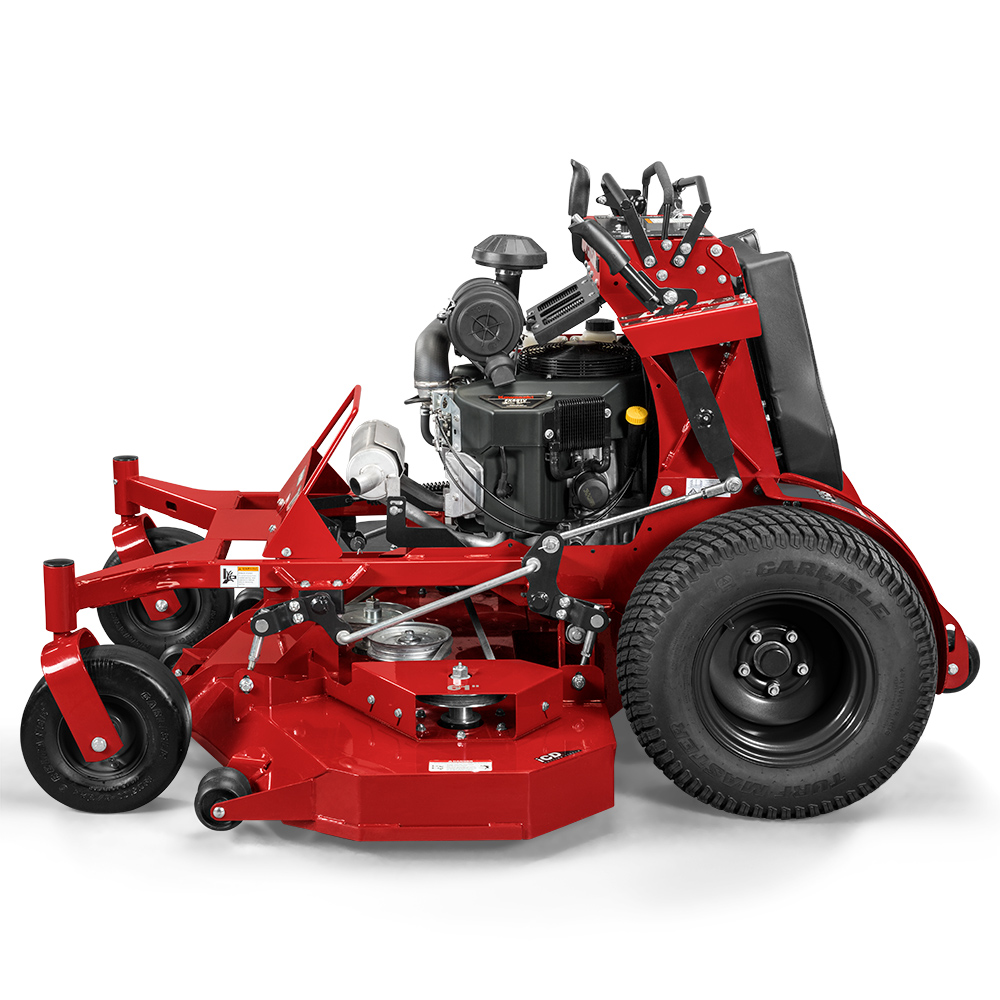

SRS™ Z2 Soft Ride Stand-On Mowers
A COMBINATION OF SPEED, AGILITY AND HIGH QUALITY OF CUT
The Soft Ride Stand-On SRS™ Z2 features our adjustable operator platform with suspension technology that optimizes operator comfort and increases productivity. The superior balance provides excellent stability and maneuverability that exceeds expectations for traction and handling. Featuring our redesigned iCD™+ Cutting System (select models) for maximum vacuum and clipping ejection to deliver only the most premium cut.
52″ +
Deck Size
28 HP
Power Rating*
10 MPH
Ground Speed
4-Years
Limited Warranty
Features

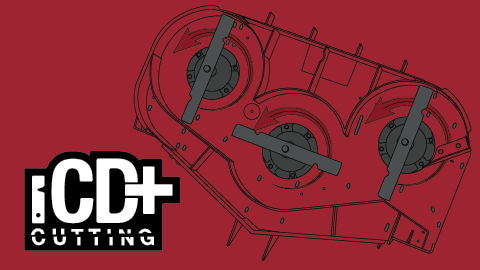

NEW! iCD™+ Cutting System
Redesigned to deliver next-level performance, increased durability and superior results. Select models.

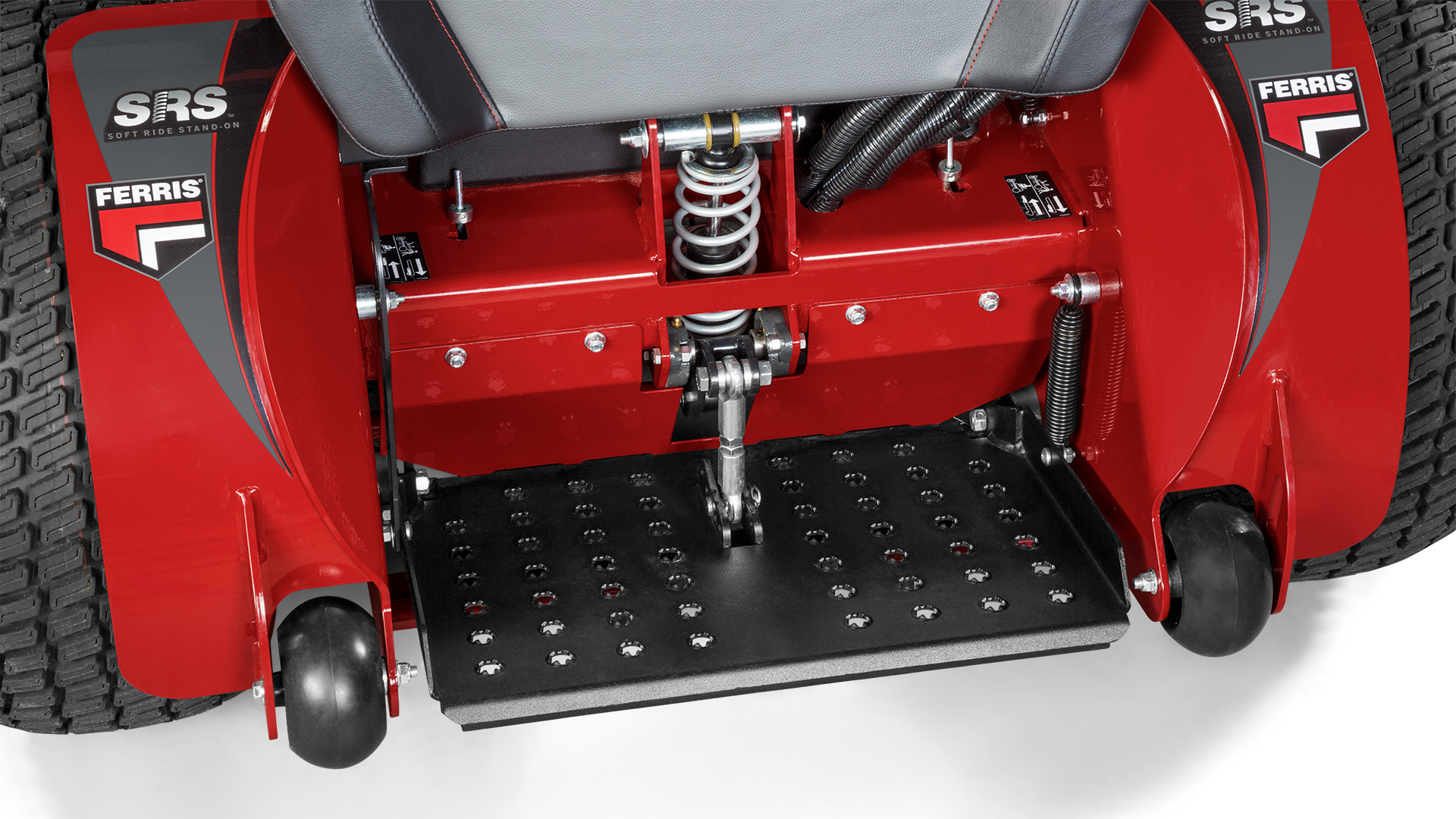

Suspension Platform System
The suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.
500 Hour Oil Change (Select Models)
Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**

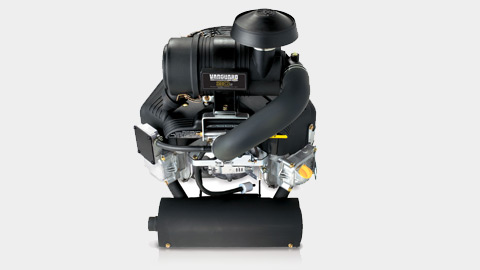

Vanguard™ 810cc EFI engines
Vanguard™ 810cc engines deliver the optimum power, performance and efficiency commercial zero-turn mowers need.

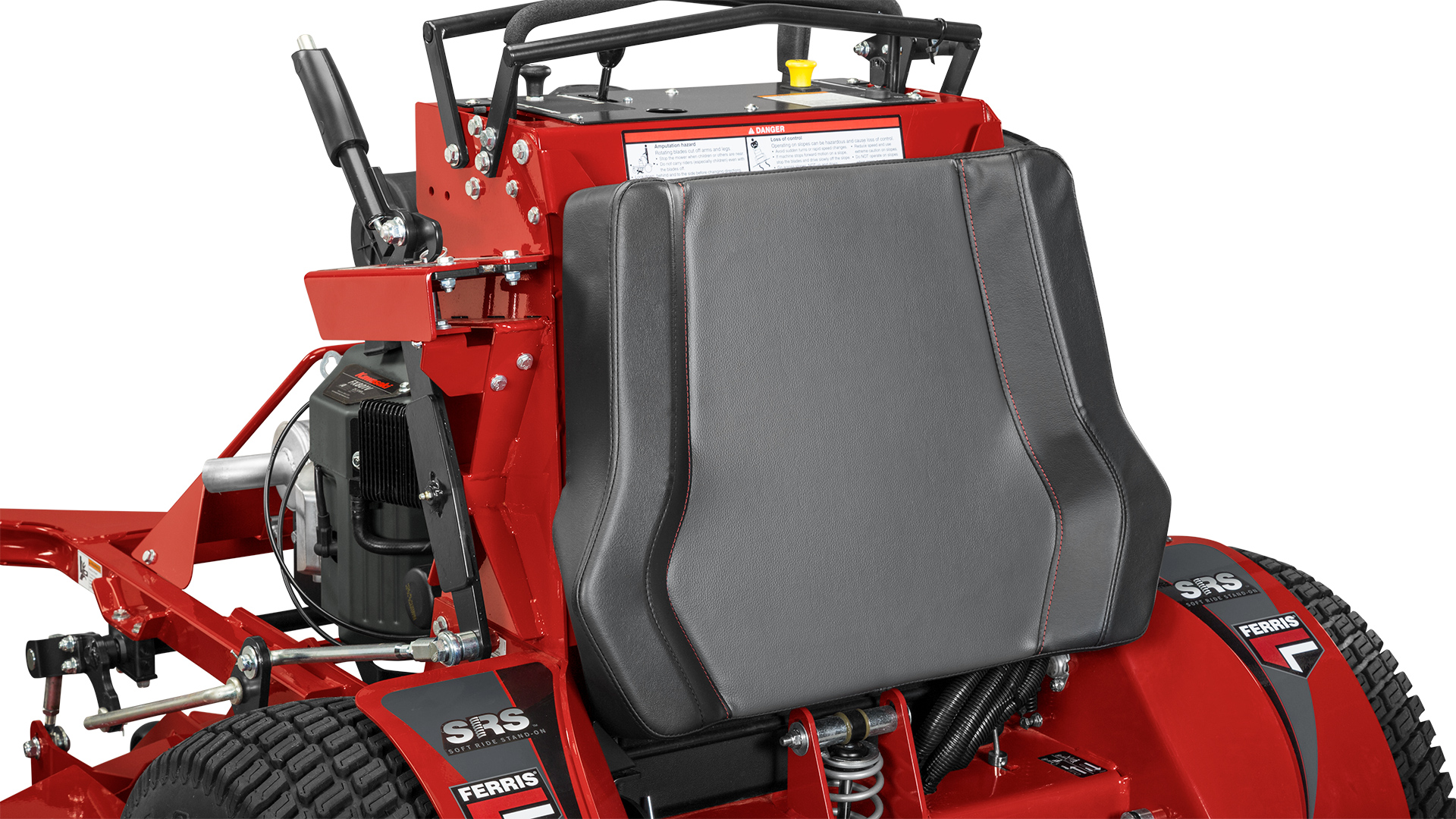

Standing Comfort
Ergonomically designed thigh pad provides superior operator comfort and stability, especially on hilly terrain.

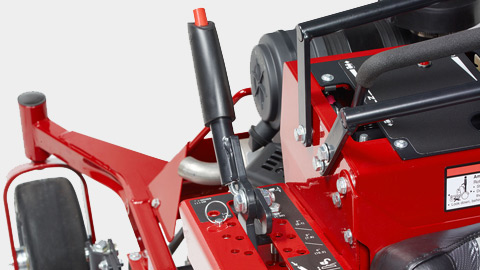

Adjustable Height of Cut
Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4″ increments from 1.75″- 5″.

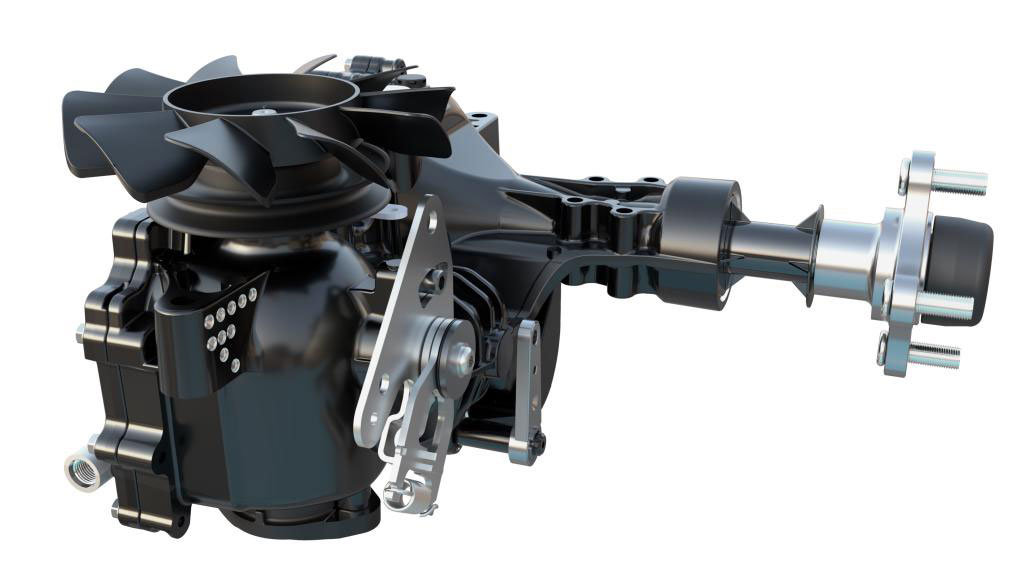

Integrated Mowing Transmissions
Commercial Hydro-Gear® ZT-3800® transaxles are designed for high performance and are fully serviceable.
† See operator’s manual or dealer for complete warranty details. Refer to engine operator’s manual for engine warranty.
Specifications
Model 5902050 Specifications
Model Number
5902050
US MSRP ^
$11,824.00
CAN MSRP ^
$15,962.00
Engine Brand
Kawasaki® FT730V
Engine Power Rating (hp) *
24
Starter
Electric
Displacement (cc)
726
PTO
Electric
Cylinders
2
Fuel Tank Capacity (gal)
8
Deck Construction
iCD™ Cutting System
Deck Size (in)
52
Cutting Height (in)
1.75 – 5
Spindles
Aluminum Greaseable
Suspension
Adjustable coil-over-shock; Operator Suspension Platform
Transmission
Dual commercial Hydro-Gear® ZT-3800® transaxles with 7″ cooling fans and oil coolers
Drive Axles (in)
1.125
Drive Tires (in)
23 x 10.5-12
Caster Tires (in)
13 x 5-6, Flat-free
Ground Speed-Fwd (mph)
0 – 10
Ground Speed-Rev (mph)
0 – 5
Overall Length (in)
67
Overall Width (in) Deflector Down/Deflector Up
65 / 54.75
Dry Weight (lbs)
938
Seat Package
N/A
Certified Roll-over Protection System
N/A
Instrumentation
Dual-function hour meter, fuel level gauge
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit
Hand operated; Internal transaxle brake
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator’s manual for complete details.
Warranty Consumer Power Source Info
3-Year limited manufacturer’s warranty
Operator’s Manual – EnglishModel 5902164 Specifications
Model Number
5902164
US MSRP ^
$12,099.00
CAN MSRP ^
$16,334.00
Engine Brand
Kawasaki® FX801V
Engine Power Rating (hp) *
25.5
Starter
Electric
Displacement (cc)
852
PTO
Electric
Cylinders
2
Fuel Tank Capacity (gal)
8
Deck Construction
iCD™ Cutting System
Deck Size (in)
52
Cutting Height (in)
1.75 – 5
Spindles
Aluminum Greaseable
Suspension
Adjustable coil-over-shock; Operator Suspension Platform
Transmission
Dual, commercial Hydro-Gear® ZT-3800® transaxles with 7″ cooling fans and oil coolers
Drive Axles (in)
1.125
Drive Tires (in)
23 x 10.5-12
Caster Tires (in)
13 x 5-6, Flat-free
Ground Speed-Fwd (mph)
0 – 10
Ground Speed-Rev (mph)
0 – 5
Overall Length (in)
67
Overall Width (in) Deflector Down/Deflector Up
65 / 54.75
Dry Weight (lbs)
938
Seat Package
N/A
Certified Roll-over Protection System
N/A
Instrumentation
Dual-function hour meter, fuel level gauge
Safety Group/Controls
Operator presence in platform, Parking safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit
Hand operated, Internal transaxle brake
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator’s manual for complete details.
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Operator’s Manuals
Model 5902165 Specifications
Model Number
5902165
US MSRP ^
$12,704.00
CAN MSRP ^
$17,150.00
Engine Brand
Vanguard™ 810 EFI with Oil Guard
Engine Power Rating (hp) *
28
Starter
Electric
Displacement (cc)
810
PTO
Electric
Cylinders
2
Fuel Tank Capacity (gal)
8
Deck Construction
iCD™ Cutting System
Deck Size (in)
52
Cutting Height (in)
1.75 – 5
Spindles
Aluminum Greaseable
Suspension
Adjustable coil-over-shock; Operator Suspension Platform
Transmission
Dual, commercial Hydro-Gear® ZT-3800® transaxles with 7″ cooling fans and oil coolers
Drive Axles (in)
1.125
Drive Tires (in)
23 x 10.5-12
Caster Tires (in)
13 x 5-6, Flat-free
Ground Speed-Fwd (mph)
0 – 10
Ground Speed-Rev (mph)
0 – 5
Overall Length (in)
67
Overall Width (in) Deflector Down/Deflector Up
65 / 54.75
Dry Weight (lbs)
938
Seat Package
N/A
Certified Roll-over Protection System
N/A
Instrumentation
Dual-function hour meter, fuel level gauge
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit
Hand operated; Internal transaxle brake
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator’s manual for complete details.
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Operator’s Manuals
Model 5902070 Specifications
Model Number
5902070
US MSRP ^
$13,199.00
CAN MSRP ^
$17,819.00
Engine Brand
Vanguard™ 810 EFI with Oil Guard
Engine Power Rating (hp) *
28
Starter
Electric
Displacement (cc)
810
PTO
Electric
Cylinders
2
Fuel Tank Capacity (gal)
8
Deck Construction
iCD™+ Cutting System
Deck Size (in)
60
Cutting Height (in)
1.75 – 5
Spindles
Cast-iron
Suspension
Adjustable coil-over-shock; Operator Suspension Platform
Transmission
Dual, commercial Hydro-Gear® ZT-3800® transaxles with 7″ cooling fans and oil coolers
Drive Axles (in)
1.125
Drive Tires (in)
23 x 10.5-12
Caster Tires (in)
13 x 5-6, Flat-free
Ground Speed-Fwd (mph)
0 – 10
Ground Speed-Rev (mph)
0 – 5
Overall Length (in)
72.75
Overall Width (in) Deflector Down/Deflector Up
74 / 65
Dry Weight (lbs)
1051
Seat Package
N/A
Certified Roll-over Protection System
N/A
Instrumentation
Dual-function hour meter, fuel level gauge
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit
Hand operated; Internal transaxle brake
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator’s manual for complete details.
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Model 5902164 Specifications
Model Number
5902164
US MSRP ^
$12,374.00
CAN MSRP ^
$16,705.00
Engine Brand
Kawasaki® FX801V
Engine Power Rating (hp) *
25.5
Starter
Electric
Displacement (cc)
852
PTO
Electric
Cylinders
2
Fuel Tank Capacity (gal)
8
Deck Construction
iCD™+ Cutting System
Deck Size (in)
52
Cutting Height (in)
1.75 – 5
Spindles
Aluminum Greaseable
Suspension
Adjustable coil-over-shock; Operator Suspension Platform
Transmission
Dual, commercial Hydro-Gear® ZT-3800® transaxles with 7″ cooling fans and oil coolers
Drive Axles (in)
1.125
Drive Tires (in)
23 x 10.5-12
Caster Tires (in)
13 x 5-6, Flat-free
Ground Speed-Fwd (mph)
0 – 10
Ground Speed-Rev (mph)
0 – 5
Overall Length (in)
67
Overall Width (in) Deflector Down/Deflector Up
65 / 54.75
Dry Weight (lbs)
938
Seat Package
N/A
Certified Roll-over Protection System
N/A
Instrumentation
Dual-function hour meter, fuel level gauge
Safety Group/Controls
Operator presence in platform, Parking safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit
Hand operated, Internal transaxle brake
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator’s manual for complete details.
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Operator’s Manuals
Model 5902165 Specifications
Model Number
5902165
US MSRP ^
$12,704.00
CAN MSRP ^
$17,150.00
Engine Brand
Vanguard™ 810 EFI with Oil Guard
Engine Power Rating (hp) *
28
Starter
Electric
Displacement (cc)
810
PTO
Electric
Cylinders
2
Fuel Tank Capacity (gal)
8
Deck Construction
iCD™+ Cutting System
Deck Size (in)
52
Cutting Height (in)
1.75 – 5
Spindles
Aluminum Greaseable
Suspension
Adjustable coil-over-shock; Operator Suspension Platform
Transmission
Dual, commercial Hydro-Gear® ZT-3800® transaxles with 7″ cooling fans and oil coolers
Drive Axles (in)
1.125
Drive Tires (in)
23 x 10.5-12
Caster Tires (in)
13 x 5-6, Flat-free
Ground Speed-Fwd (mph)
0 – 10
Ground Speed-Rev (mph)
0 – 5
Overall Length (in)
67
Overall Width (in) Deflector Down/Deflector Up
65 / 54.75
Dry Weight (lbs)
938
Seat Package
N/A
Certified Roll-over Protection System
N/A
Instrumentation
Dual-function hour meter, fuel level gauge
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit
Hand operated; Internal transaxle brake
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator’s manual for complete details.
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Operator’s Manuals
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
**Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval. See operator’s manual or dealer for complete warranty details.
† Refer to engine operator’s manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
**Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval. See operator’s manual or dealer for complete warranty details.
† Refer to engine operator’s manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
