ISX™ 800 Zero Turn Mower
AFFORDABLE COMMERCIAL ZERO TURN WITH NEXT GENERATION FERRIS SUSPENSION TECHNOLOGY
The ISX™ 800 is engineered to increase comfort and efficiency, including new OilXtend™ technology to boost productivity. We combine next-generation Ferris technology – ForeFront™ Suspension with iCD™ and iCD™+ Cutting Systems for a smoother ride and improved cut.
52+”
Deck Size
24+ HP
Power Rating*
10 MPH
Ground Speed
4-Years
Limited Warranty
Features

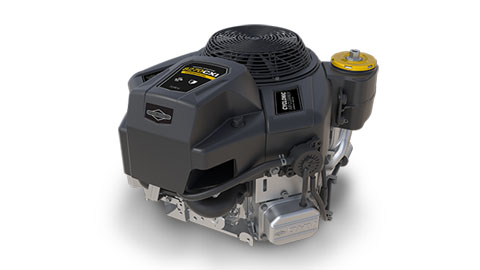

NEW! OilXtend™
Boosts productivity and minimizes downtime by 250 hours – 2.5 times longer than the industry standard. (5902172 only)
NEW! iCD™+ Cutting System
Redesigned to deliver next-level performance, increased durability and superior results. Select models.
NEW! USB Port
12V-60V, USB Type A & C located on the dash panel for easy access and charging.
EFI-ETC Engine Technology
Select models feature the Briggs & Stratton Commercial Series engine with EFI-ETC technology for easy starting and smooth performance.

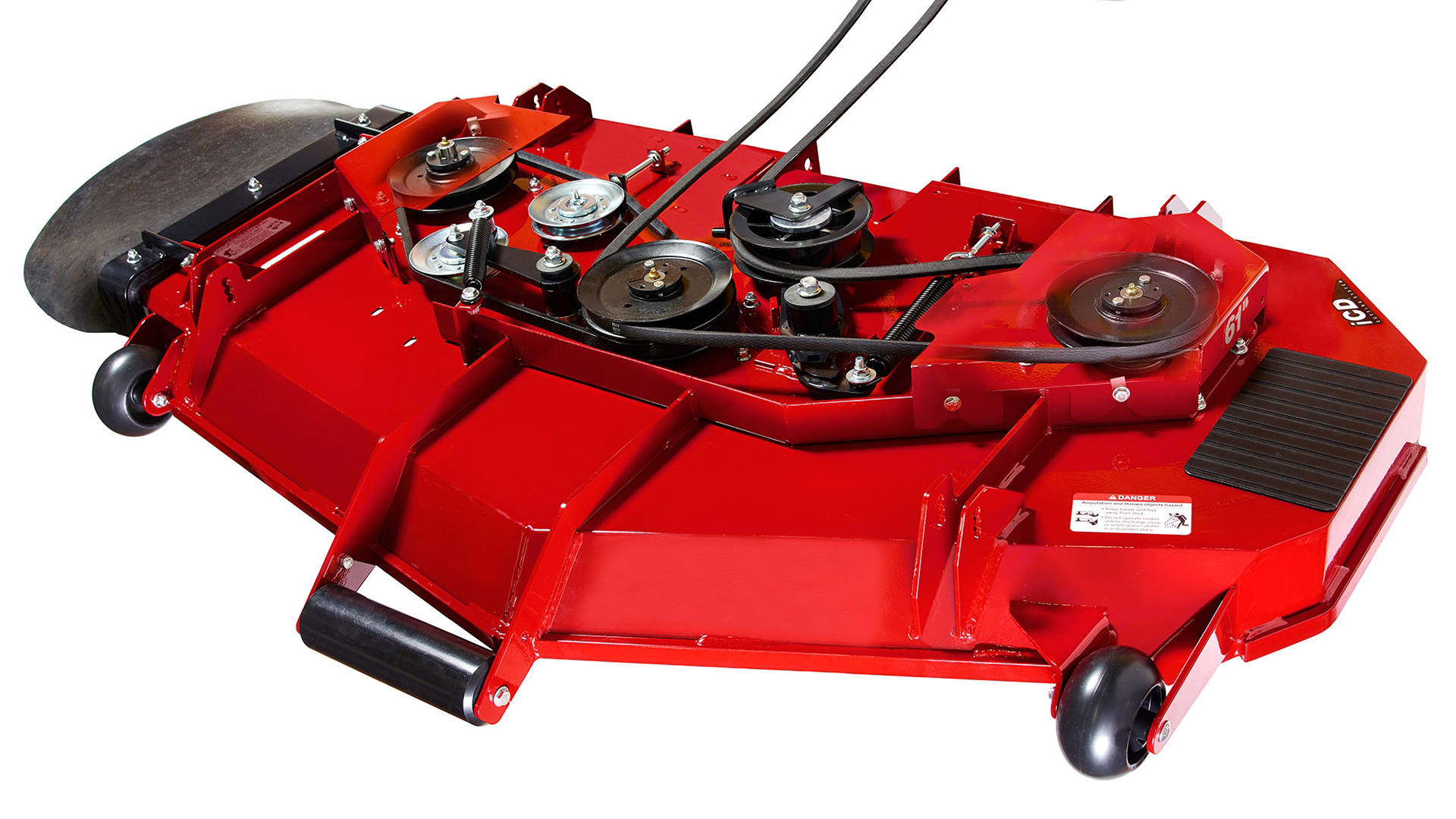

iCD™ Cutting System
iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. The ISX™ 800 is equipped with a 2-belt deck and provides a 3-year belt limited warranty (See operator’s manual for complete warranty details).

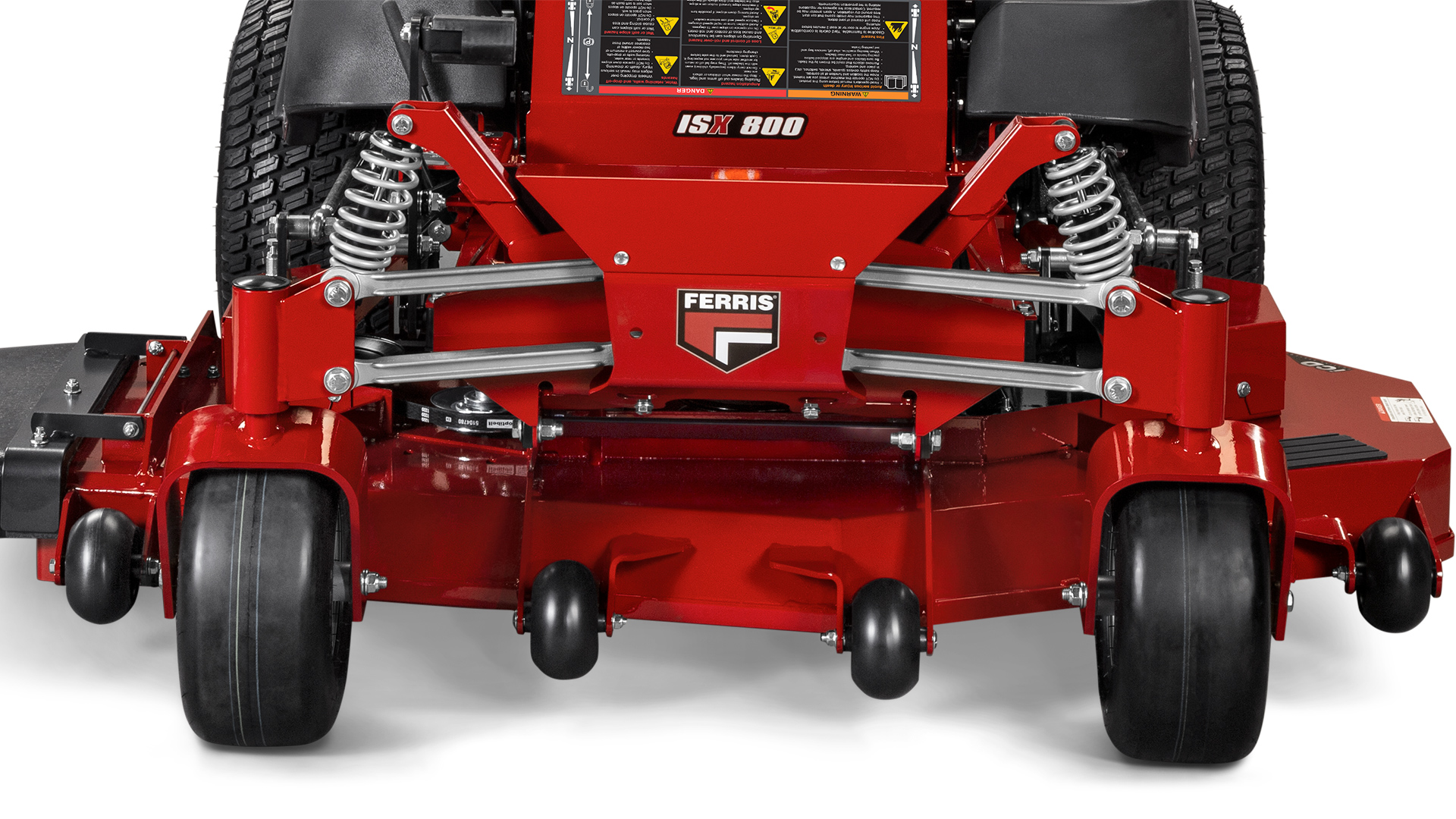

ForeFront™ Suspension System
The system utilizes four upper and lower control rods that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

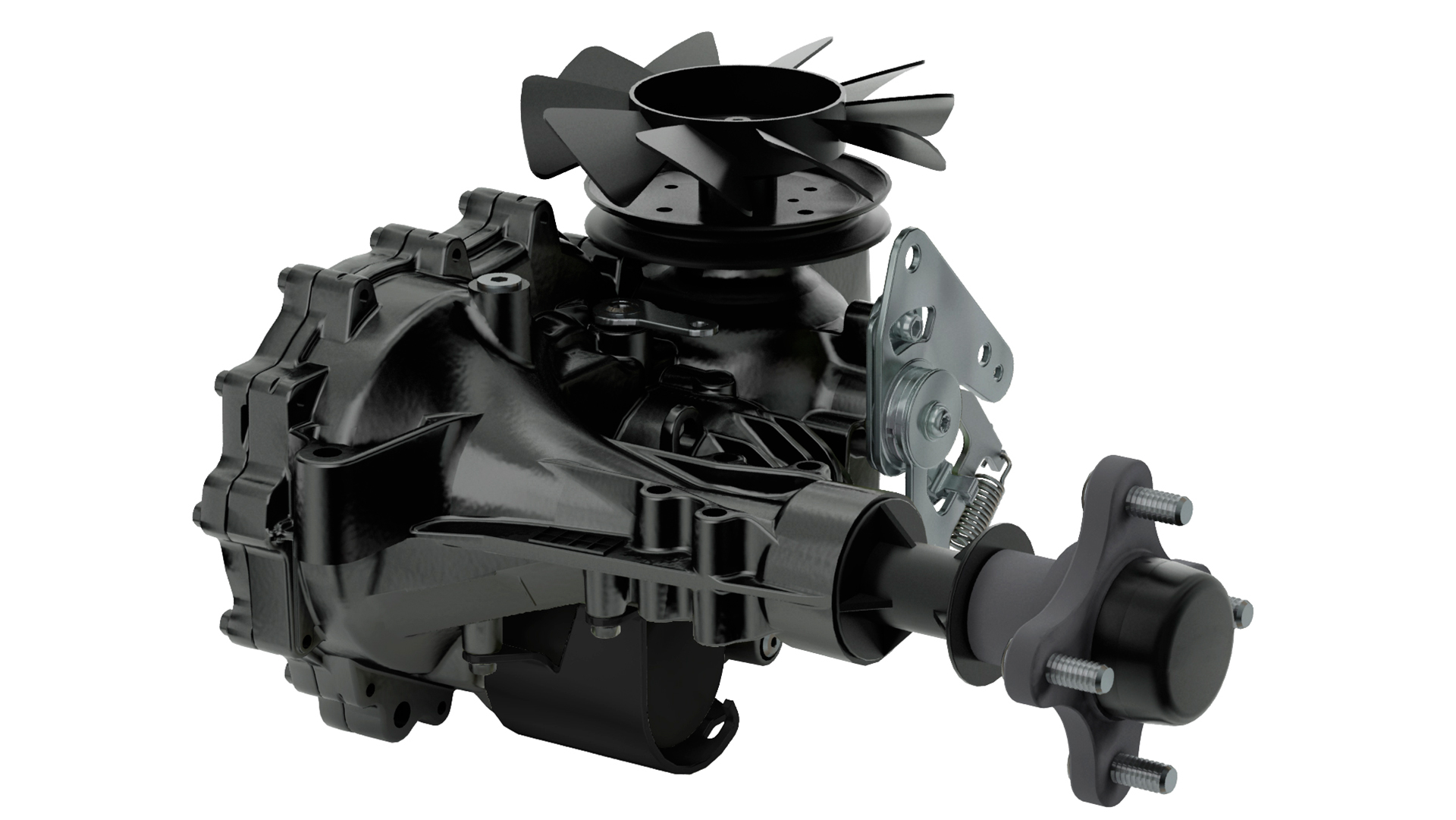

Integrated Transmission
Commercial Hydro-Gear® ZT-3400™ transaxles, with 7″ cooling fans, are designed for high performance and are fully serviceable.

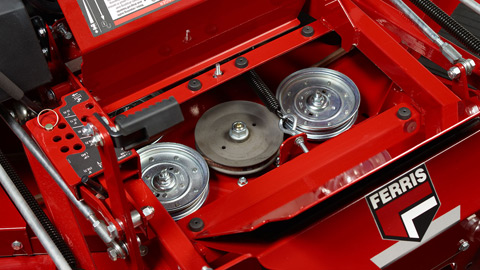

Easy Access
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
Specifications
Model 5902073 Specifications
Model Number
5902073
US MSRP ^
$12,209.00
CAN MSRP ^
$16,482.00
Engine Brand
Kawasaki® FT730V
Engine Power Rating *
24
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
5.5
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Deck Size (in)
60
Cutting Height (in)
1.5 – 5
Spindles
Aluminum Greaseable
Deck Construction
iCD™+ Cutting System
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7″ cooling fans
Drive Axles (in)
1.125
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
81
Overall Width (in) Deflector Down/Deflector Up
74/65
Dry Weight (lbs)
1268
Seat Package
Mid-back suspension seat with adjustable arm rests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
Engine Configuration
Kawasaki®
Operator’s Manual – EnglishModel 5902074 Specifications
Model Number
5902074
US MSRP ^
$12,704.00
CAN MSRP ^
$17,150.00
Engine Brand
Kawasaki® FT730V – EFI
Engine Power Rating *
26
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
5.5
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Deck Size (in)
60
Cutting Height (in)
1.5 – 5
Spindles
Aluminum Greaseable
Deck Construction
iCD™+ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7″ cooling fans
Drive Axles (in)
1.125
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
81
Overall Width (in) Deflector Down/Deflector Up
74/65
Dry Weight (lbs)
1268
Seat Package
Mid-back suspension seat with adjustable arm rests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
Engine Configuration
Kawasaki®
Model 5902075 Specifications
Model Number
5902075
US MSRP ^
$11,604.00
CAN MSRP ^
$15,665.00
Engine Brand
Briggs & Stratton® CXi
Engine Power Rating *
27
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Deck Size (in)
60
Cutting Height (in)
1.5 – 5
Spindles
Aluminum Greaseable
Deck Construction
iCD™+ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7″ cooling fans
Drive Axles (in)
1.125
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
81
Overall Width (in) Deflector Down/Deflector Up
74/65
Dry Weight (lbs)
1268
Seat Package
Mid-back suspension seat with adjustable arm rests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
Engine Configuration
Briggs & Stratton®
Model 5902084 Specifications
Model Number
5902084
US MSRP ^
CAN MSRP ^
Engine Brand
Briggs & Stratton® CXi
Engine Power Rating *
27
Displacement (cc)
810
PTO
Electric
Cylinders
2
Fuel Tank Capacity (gal)
5.5
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Deck Size (in)
52
Cutting Height (in)
1.5 – 5
Spindles
Aluminum Greaseable
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7″ cooling fans
Deck Construction
iCD™+ Cutting System, 2-Belt
Drive Axles (in)
1.125
Caster Tires (in)
13 x 6.5-5
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0 – 10
Ground Speed-Rev (mph)
0 – 5
Overall Length (in)
81
Overall Width (in) Deflector Down/Deflector Up
65 / 57
Dry Weight (lbs)
1206
Seat Package
Mid-back suspension seat with adjustable arm rests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year Limited Manufacturer’s Warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
Starter
Electric
Engine Configuration
Briggs & Stratton®
Engine Fuel Type
Gasoline
Operator’s Manuals
Model 5902155 Specifications
Model Number
5902155
US MSRP ^
$11,604.00
CAN MSRP ^
$15,665.00
Engine Brand
Kawasaki® FT730V
Engine Power Rating *
24
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
5.5
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Deck Size (in)
52
Cutting Height (in)
1.5 – 5
Spindles
Aluminum Greaseable
Deck Construction
iCD™+ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7″ cooling fans
Drive Axles (in)
1.125
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
81
Overall Width (in) Deflector Down/Deflector Up
65 / 57
Dry Weight (lbs)
1206
Seat Package
Mid-back suspension seat with adjustable arm rests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
Engine Configuration
Kawasaki®
Model 5902172 Specifications
Model Number
5902172
US MSRP ^
$11,934.00
CAN MSRP ^
$16,111.00
Engine Brand
Briggs & Stratton® CXi Series EFI-ETC w/ OilXtend™
Engine Power Rating *
27
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
5.5
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Deck Size (in)
60
Cutting Height (in)
1.5 – 5
Spindles
Aluminum Greaseable
Deck Construction
iCD™+ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7″ cooling fans
Drive Axles (in)
1.125
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
81
Overall Width (in) Deflector Down/Deflector Up
74/65
Dry Weight (lbs)
1268
Seat Package
Mid-back suspension seat with adjustable arm rests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
Engine Configuration
Briggs & Stratton®
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator’s manual or dealer for complete warranty details. Refer to engine operator’s manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
† See operator’s manual or dealer for complete warranty details. Refer to engine operator’s manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
