ISX™ 3300 Zero Turn Mowers

THE LEADER IN SUSPENSION TECHNOLOGY FOR TURF

Featuring next-generation suspension technology – ForeFront™ Suspension, a redesigned 2-belt iCD™+ cutting system, heavy-duty dual commercial Hydro-Gear® ZT-5400 drive system, and travel speeds up to 12 mph. Plus, select models feature EFI-ETC technology for fuel savings, easy starting, and smooth, consistent productivity.

60+”

Deck Size

31+ HP

Power Rating*

12 MPH

Ground Speed

4-Years

Limited Warranty

Features

NEW! iCD™+ Cutting System

Redesigned to deliver next-level performance, increased durability and superior results. Select models.

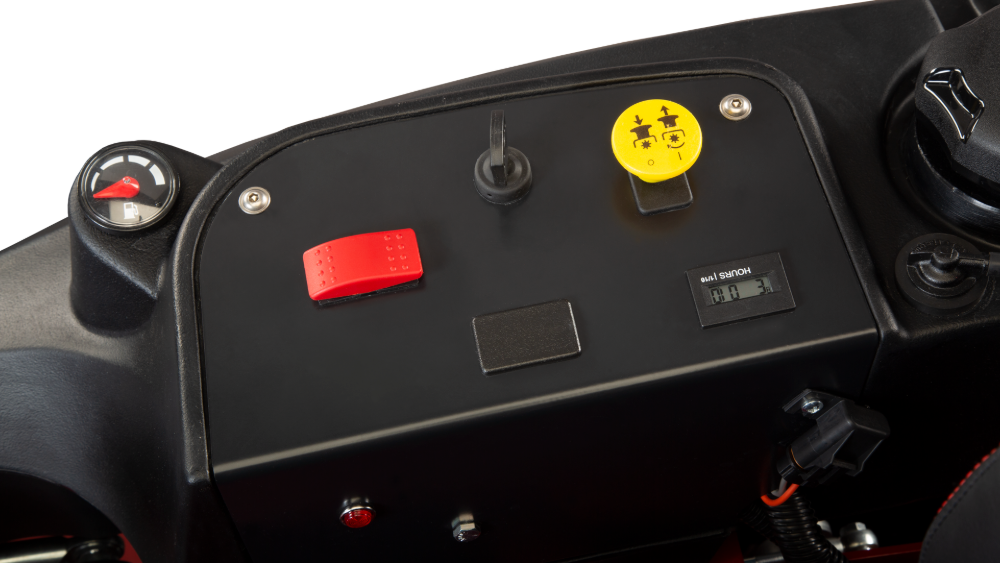

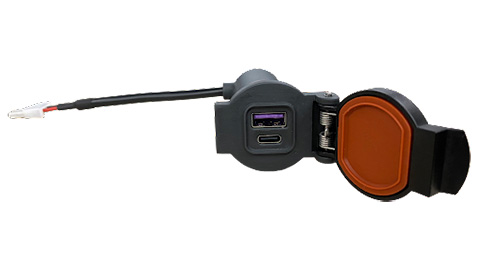

NEW! USB Port

12V-60V, USB Type A & C located on the dash panel for easy access and charging.

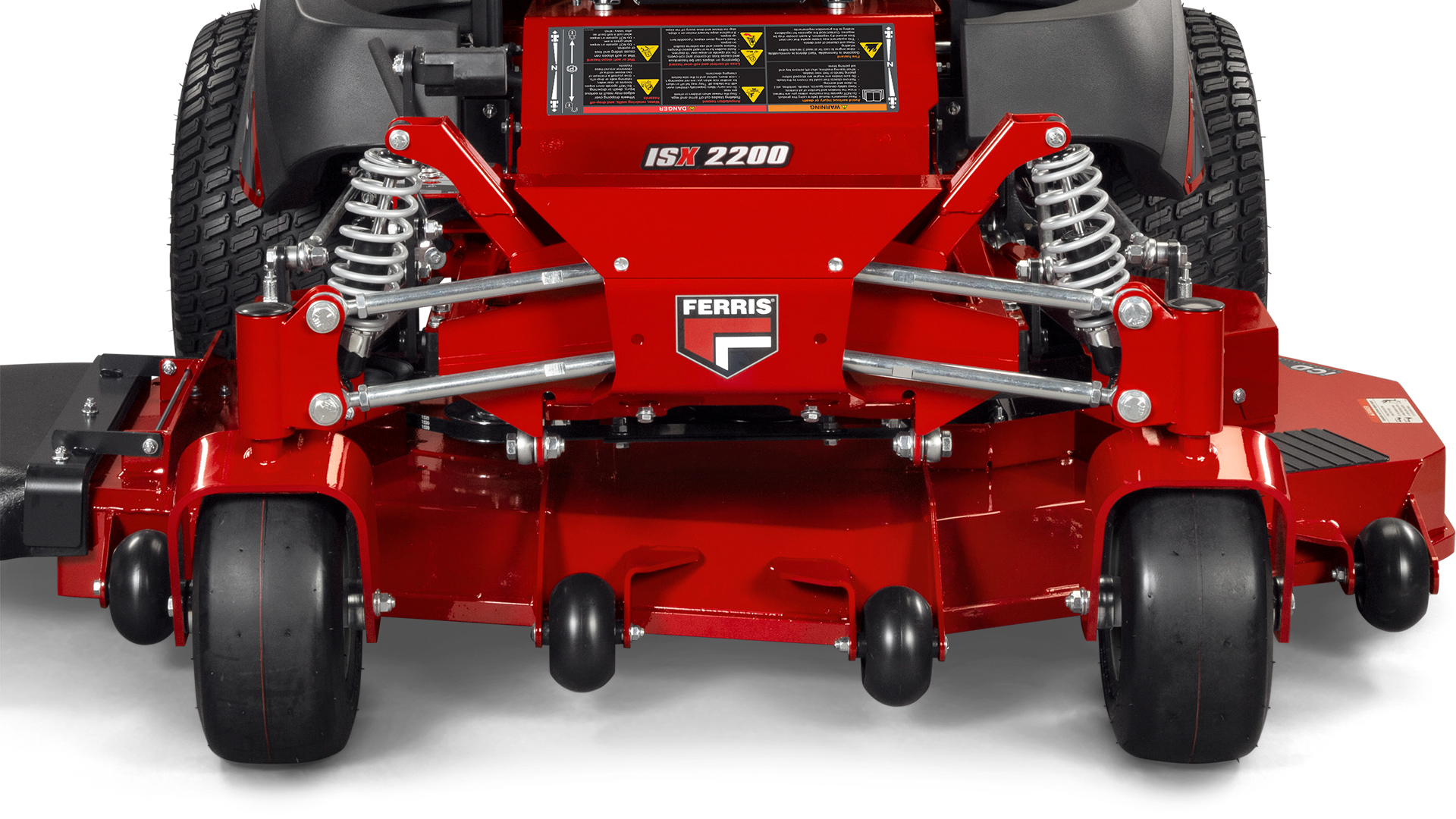

ForeFront™ Suspension System

The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

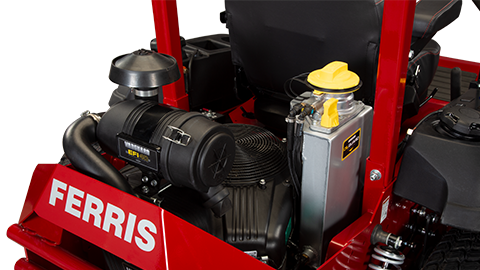

Vanguard BIG BLOCK™ Engine

The EFI-ETC engine with Oil Guard delivers a 500 hour oil change interval and 28 hp*, giving you added cutting performance to excel in thick, dense, and wet conditions. (select models)

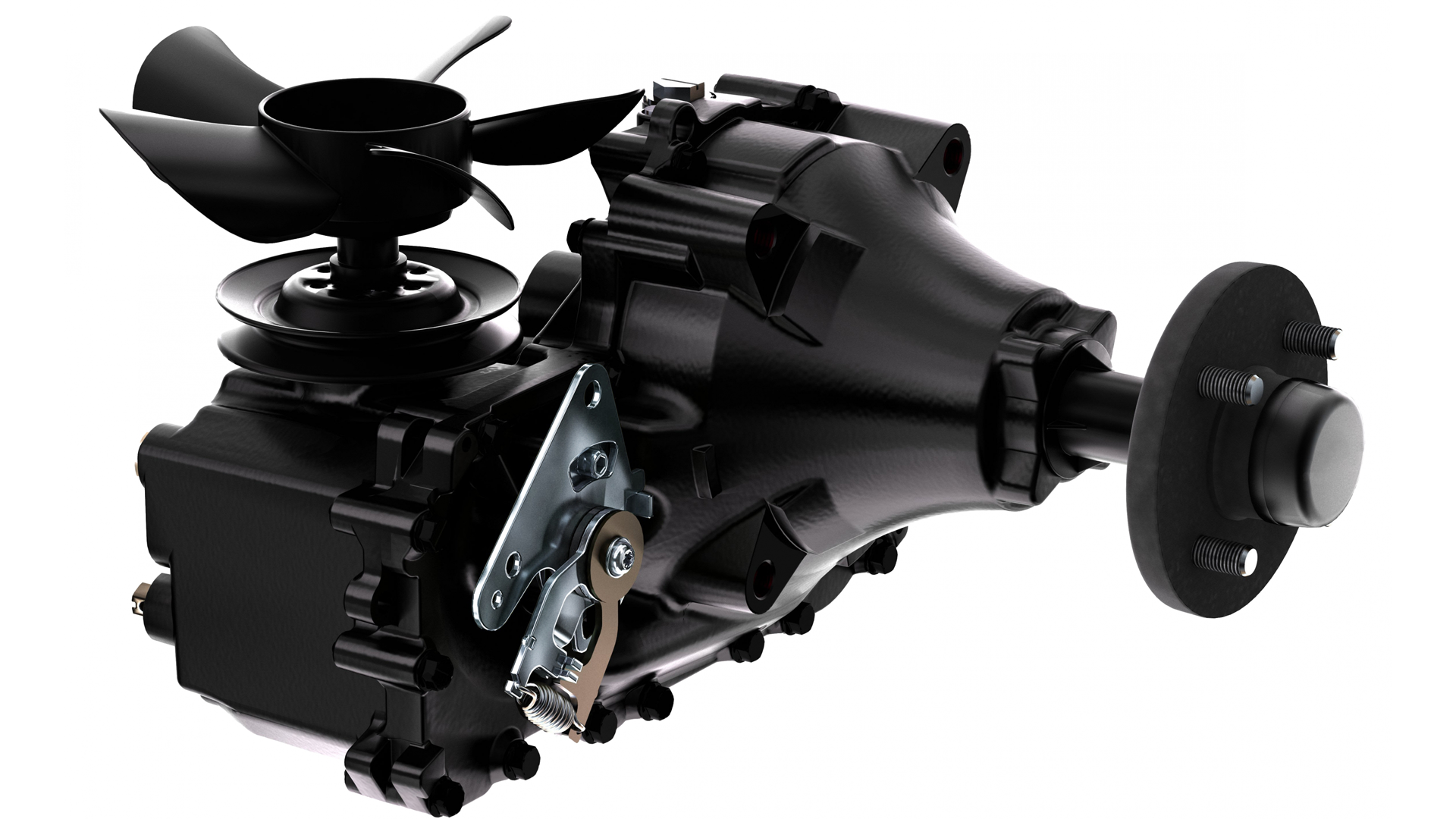

Drive System

Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9″ cooling fans

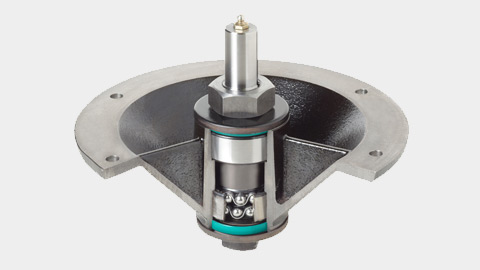

Hercules™ II Cast-Iron

Hercules™ II Cast-Iron; 10″ dia. cast-iron with industrial double row angular contact ball bearing with 1 3/16″ dia. shaft. Contact ball bearings with 1 3/16″ dia. shaft.

Vanguard Electronic Throttle Control

This new technology allows the engine to harness all the power that is generated for more consistent blade tip speed. (select models)

Specifications

Model 5902065 Specifications
Model Number
5902065
US MSRP ^
$20,514.00
CAN MSRP ^
$27,694.00
Engine Brand
Kawasaki® FX1000V EFI
Engine Power Rating *
38.5
Displacement (cc)
999
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Deck Size (in)
60
Cutting Height (in)
1.5 – 5
Spindles
Hercules™ II Cast-Iron
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9″ cooling fans
Deck Construction
iCD™+ Cutting System, 2-Belt
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
26 x 12-12
Ground Speed-Fwd (mph)
0-12
Ground Speed-Rev (mph)
0-5
Overall Length (in)
84.5
Overall Width (in) Deflector Down/Deflector Up
74/65
Dry Weight (lbs)
1496
Seat Package
Premium high-back suspension seat with adjustable arm rests, adjustable lumbar and back recline
Certified Roll-over Protection System
158° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
Engine Configuration
Kawasaki®
Operator’s Manuals
Download IconOperator’s Manual – English,Spanish,French
Download IconOperator’s Manual – English
Download IconIllustrated Parts List – English
Download IconWiring Diagram Schematic – English
Model 5902064 Specifications
Model Number
5902064
US MSRP ^
$20,129.00
CAN MSRP ^
$27,174.00
Engine Brand
Vanguard® BIG BLOCK™ EFI ETC with Oil Guard
Engine Power Rating *
40
Displacement (cc)
993
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Deck Size (in)
60
Cutting Height (in)
1.5 – 5
Spindles
Hercules™ II cast-iron
Deck Construction
iCD™+ Cutting System, 2-belt
Suspension
ForeFront™ Suspension System
Transmission
Dual-commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9″ cooling fans
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6 flat-free
Drive Tires (in)
26 x 12-12
Ground Speed-Fwd (mph)
0-12
Ground Speed-Rev (mph)
0-5
Overall Length (in)
84.5
Overall Width (in) Deflector Down/Deflector Up
74/65
Dry Weight (lbs)
1634
Seat Package
Premium high-back suspension seat with adjustable arm rests, adjustable lumbar and back recline
Certified Roll-over Protection System
158° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
Engine Configuration
Vanguard®
Operator’s Manuals
Download IconOperator’s Manual – English,Spanish,French
Download IconOperator’s Manual – English
Download IconIllustrated Parts List – English
Download IconWiring Diagram Schematic – English
Model 5902145 Specifications
Model Number
5902145
US MSRP ^
$20,899.00
CAN MSRP ^
$28,214.00
Engine Brand
Vanguard® BIG BLOCK™ EFI ETC with Oil Guard
Engine Power Rating *
40
Displacement (cc)
993
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Deck Size (in)
72
Cutting Height (in)
1.5 – 5
Spindles
Hercules™ II cast-iron
Suspension
ForeFront™ Suspension System
Transmission
Dual-commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9″ cooling fans
Deck Construction
iCD™+ Cutting System, 2-belt
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6 flat-free
Drive Tires (in)
26 x 12-12
Ground Speed-Fwd (mph)
0-12
Ground Speed-Rev (mph)
0-5
Overall Length (in)
84.5
Overall Width (in) Deflector Down/Deflector Up
86/74
Dry Weight (lbs)
1717
Seat Package
Premium high-back suspension seat with adjustable arm rests, adjustable lumbar and back recline
Certified Roll-over Protection System
158° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year manufacturer’s warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
Engine Configuration
Vanguard®
Operator’s Manuals
Download IconOperator’s Manual – English
Download IconIllustrated Parts List – English
Download IconWiring Diagram Schematic – English
Download IconWiring Diagram Schematic – English
Model 5902160 Specifications
Model Number
5902160
US MSRP ^
$20,734.00
CAN MSRP ^
$27,991.00
Engine Brand
Kawasaki® FX1000V EFI
Engine Power Rating *
38.5
Displacement (cc)
999
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Deck Size (in)
72
Cutting Height (in)
1.5 – 5
Spindles
Hercules™ II Cast-Iron
Deck Construction
iCD™+ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9″ cooling fans
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
26 x 12-12
Ground Speed-Fwd (mph)
0-12
Ground Speed-Rev (mph)
0-5
Overall Length (in)
84.5
Overall Width (in) Deflector Down/Deflector Up
86/74
Dry Weight (lbs)
1579
Seat Package
Premium high-back suspension seat with arm rests, adjustable lumbar and back recline
Certified Roll-over Protection System
158° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
Operator’s Manuals
Download IconOperator’s Manual – English
Download IconIllustrated Parts List – English
Download IconWiring Diagram Schematic – English

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator’s manual or dealer for complete warranty details. Refer to engine operator’s manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
^ ^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
