ISX™ 2200 Zero Turn Mowers
THE LEADER IN SUSPENSION TECHNOLOGY FOR TURF
Take productivity and comfort up a notch. The ISX™ 2200 boasts our most advanced suspension technology – ForeFront™ Suspension, ensuring operator comfort. A redesigned 2-belt iCD™+ cutting system (select models) delivers unrivaled cut quality and the heavy-duty Hydro-Gear® ZT-4400™ Transaxle drive system provides power and durability to get the job done.
52+”
Deck Size
25.5+ HP
Power Rating*
10 MPH
Ground Speed
4-Years
Limited Warranty
Features
NEW! iCD™+ Cutting System
Redesigned to deliver next-level performance, increased durability and superior results. Select models.
NEW! USB Port
12V-60V, USB Type A & C located on the dash panel for easy access and charging.

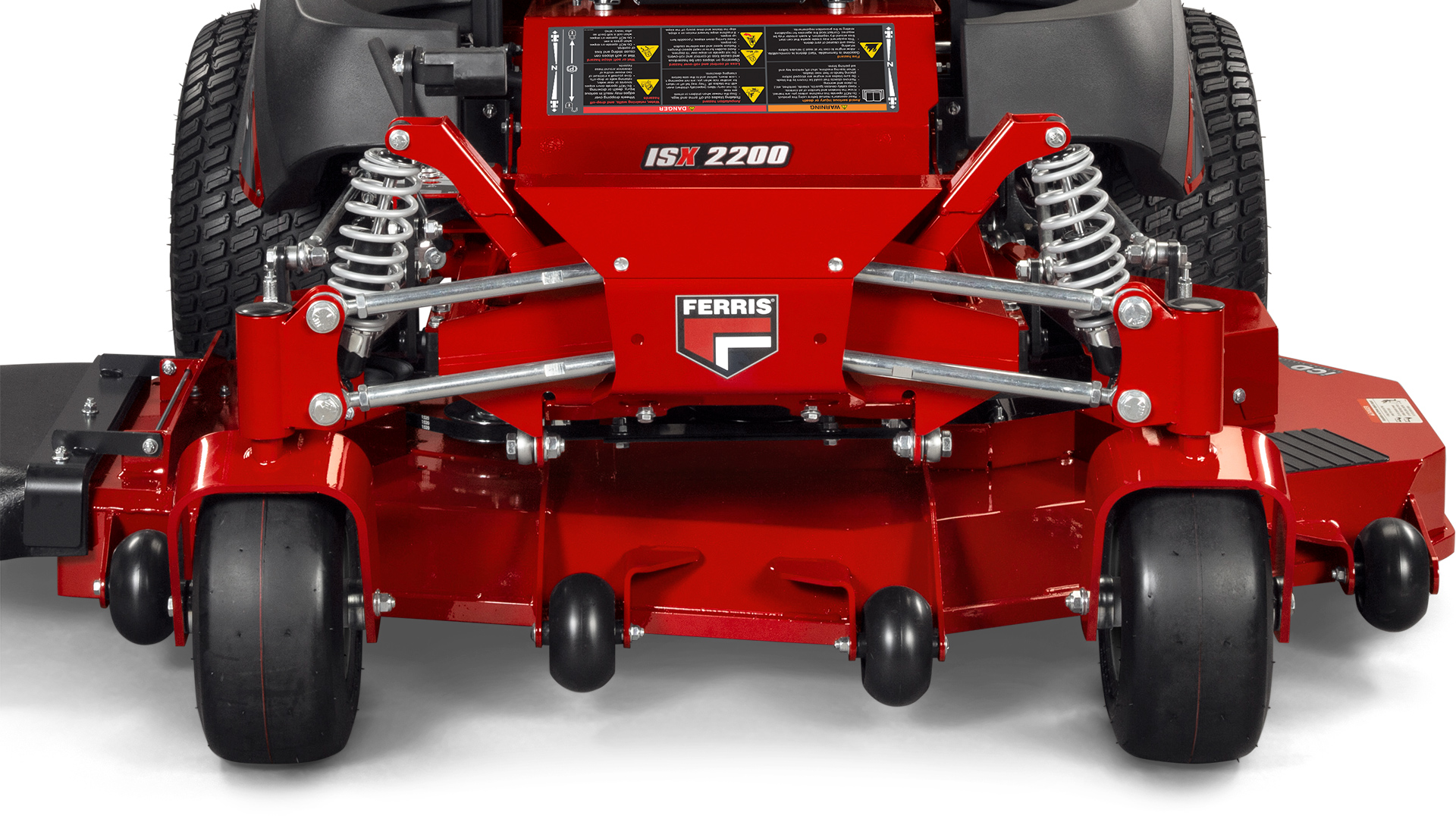

ForeFront™ Suspension System
The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

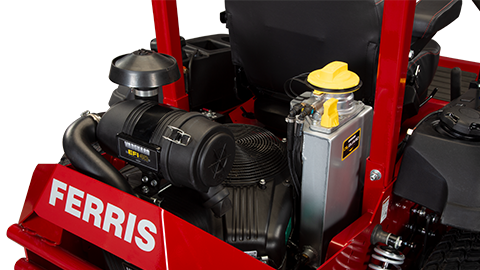

Vanguard BIG BLOCK™ Engine
The EFI-ETC engine with Oil Guard delivers a 500 hour oil change interval and 28 hp*, giving you added cutting performance to excel in thick, dense, and wet conditions. (select models)

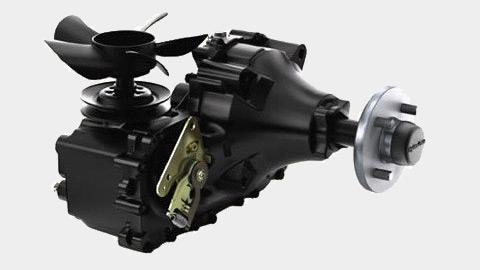

Hydro-Gear ZT-4400™ Transaxles
Dual-commercial transaxles with 8.3″ cooling fans to repel debris.

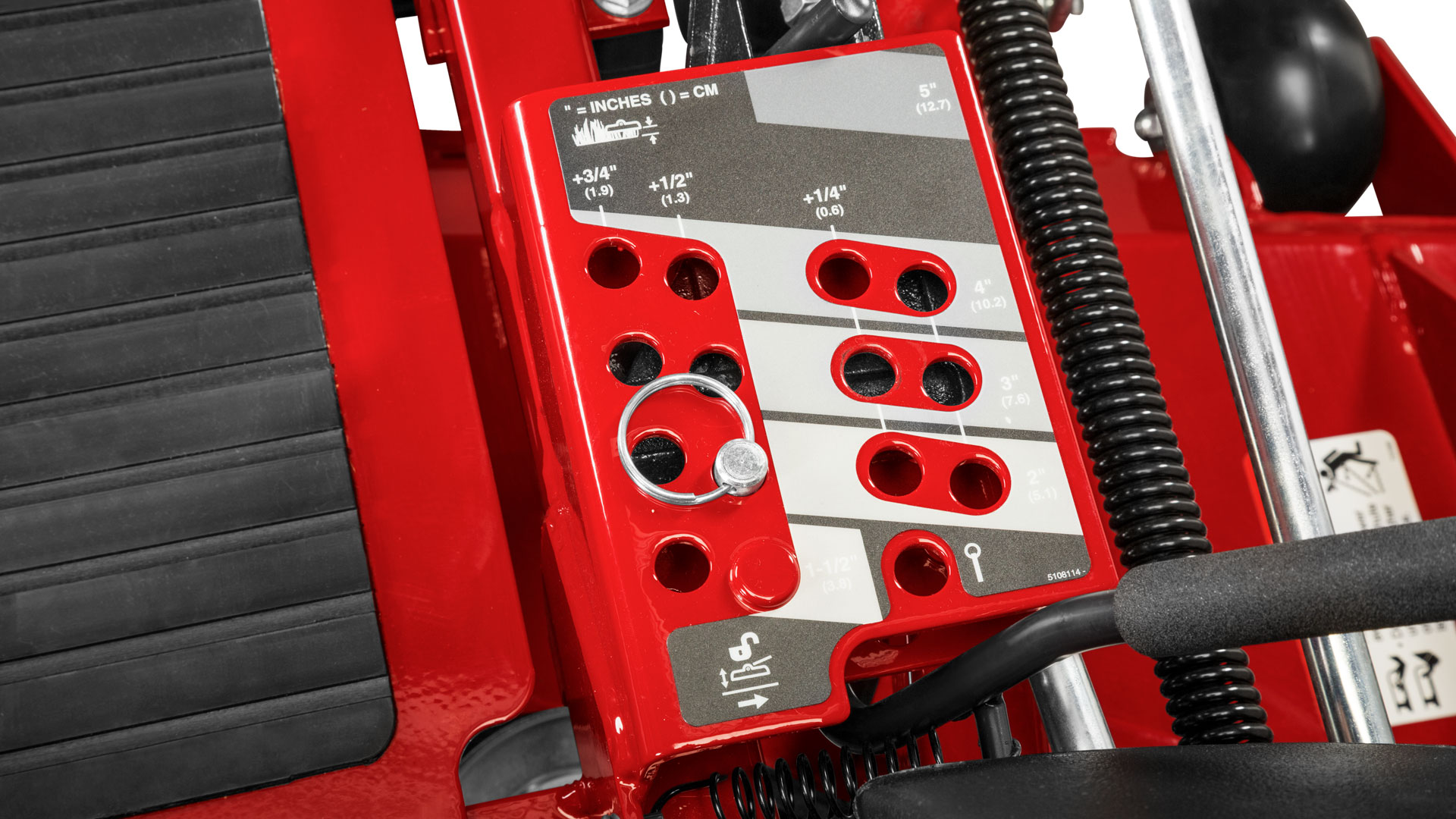

Adjustable Cut Height
Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4″ increments from 1.5″- 5″.
Ride-On Mower Warranties†
Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.
Specifications
Model 5902078 Specifications
Model Number
5902078
US MSRP ^
$15,399.00
CAN MSRP ^
$20,789.00
Engine Brand
Vanguard™ 810cc EFI with Oil Guard
Engine Power Rating *
28
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Deck Size (in)
60
Cutting Height (in)
1.5 – 5
Spindles
Cast-iron greaseable
Suspension
ForeFront™ Suspension System
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3″ cooling fans
Deck Construction
iCD™+ Cutting System, 2-Belt
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
24 x 12-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
82.5
Overall Width (in) Deflector Down/Deflector Up
74 / 65
Dry Weight (lbs)
1405
Seat Package
Premium high-back Suspension Seat with adjustable arm rests, adjustable lumbar and back recline.
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
Engine Configuration
Vanguard™
Operator’s Manual – EnglishModel 5902088 Specifications
Model Number
5902088
US MSRP ^
$14,519.00
CAN MSRP ^
$19,601.00
Engine Brand
Vanguard™ 810cc EFI with Oil Guard
Engine Power Rating *
28
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Deck Size (in)
52
Cutting Height (in)
1.5 – 5
Spindles
Cast-iron greaseable
Suspension
ForeFront™ Suspension System
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3″ cooling fans
Deck Construction
iCD™+ Cutting System, 2-Belt
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
24 x 9.5 – 12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
82.5
Overall Width (in) Deflector Down/Deflector Up
67 / 57
Dry Weight (lbs)
1335
Seat Package
Premium high-back Suspension Seat with adjustable arm rests, adjustable lumbar and back recline.
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
Engine Configuration
Vanguard™
Model 5902090 Specifications
Model Number
5902090
US MSRP ^
$14,299.00
CAN MSRP ^
$19,304.00
Engine Brand
Kawasaki® FX781 EVO
Engine Power Rating *
30.5
Displacement (cc)
822
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Deck Size (in)
52
Cutting Height (in)
1.5 -5
Spindles
Cast-iron greaseable
Deck Construction
iCD™+ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3″ cooling fans
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
24 x 9.5-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
82.5
Overall Width (in) Deflector Down/Deflector Up
67 / 57
Dry Weight (lbs)
1232
Seat Package
Adjustable sport suspension seat w/ armrests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
Engine Configuration
Kawasaki®
Model 5902180 Specifications
Model Number
5902180
US MSRP ^
$14,959.00
CAN MSRP ^
$20,195.00
Engine Brand
Kawasaki® FX781V EVO
Engine Power Rating *
30.5
Displacement (cc)
822
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Deck Size (in)
60
Cutting Height (in)
1.5 – 5
Spindles
Cast-iron greaseable
Deck Construction
iCD™+ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3″ cooling fans
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
24 x 12-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
82.5
Overall Width (in) Deflector Down/Deflector Up
74 / 65
Dry Weight (lbs)
1302
Seat Package
Premium high-back Suspension Seat with adjustable arm rests, adjustable lumbar and back recline.
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
Engine Configuration
Kawasaki®
* Power rated by engine manufacturer.
† See operator’s manual or dealer for complete warranty details. Refer to engine operator’s manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
† See operator’s manual or dealer for complete warranty details. Refer to engine operator’s manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
