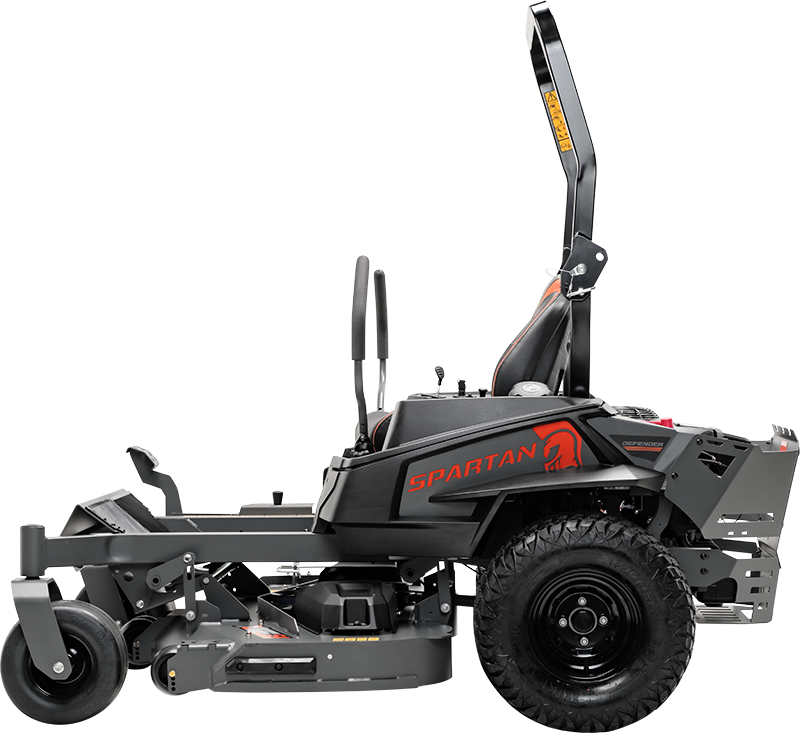

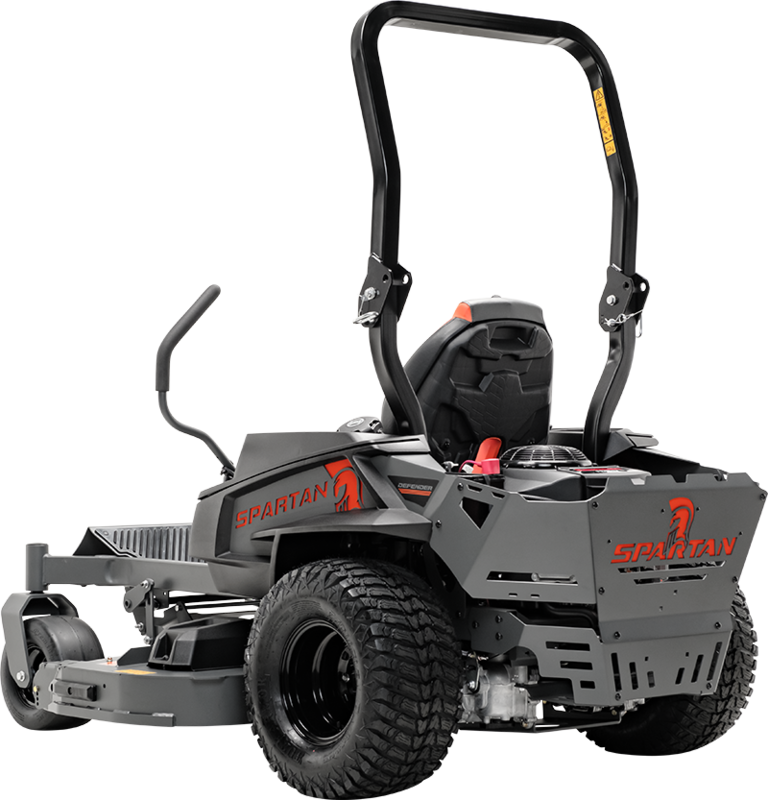

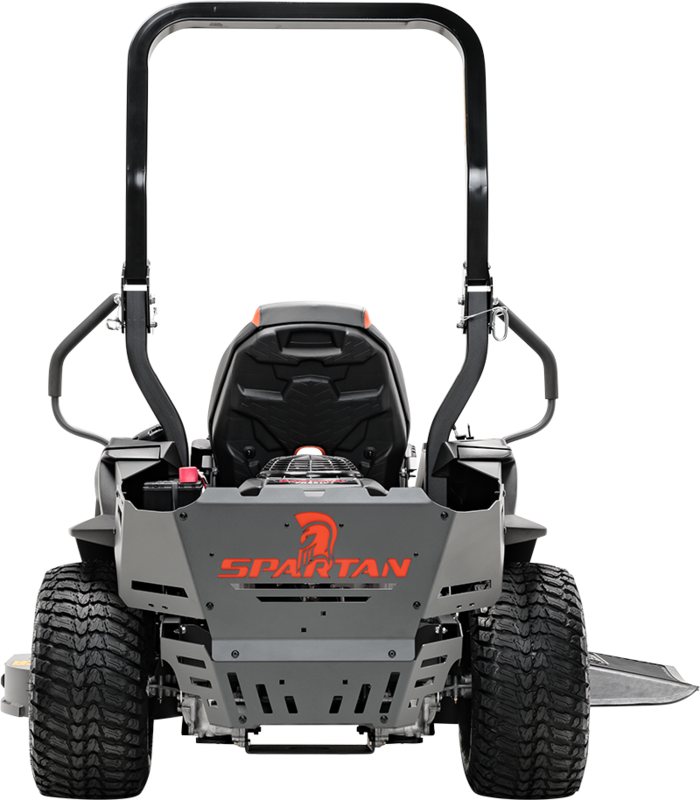

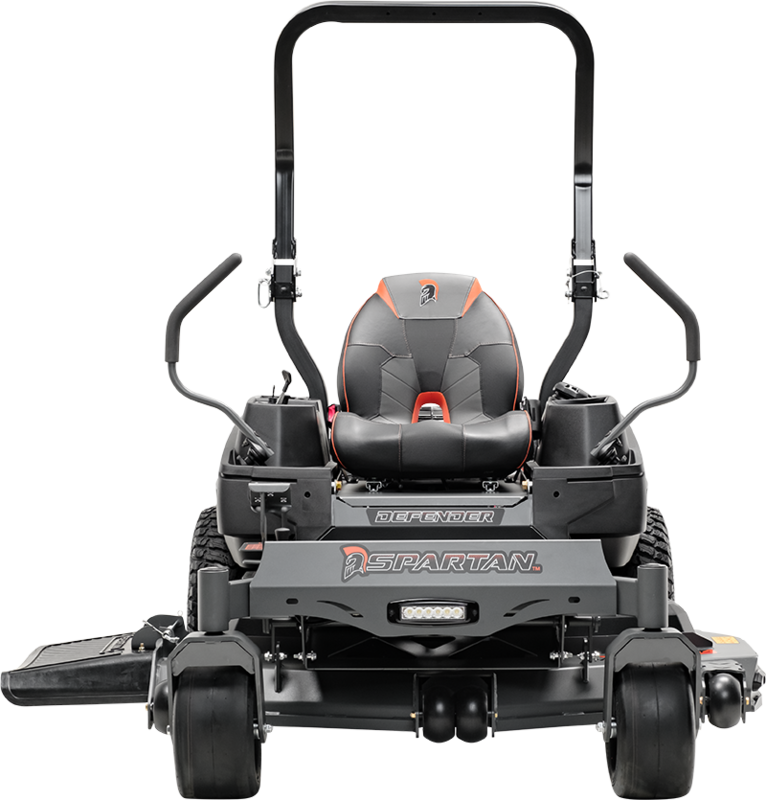

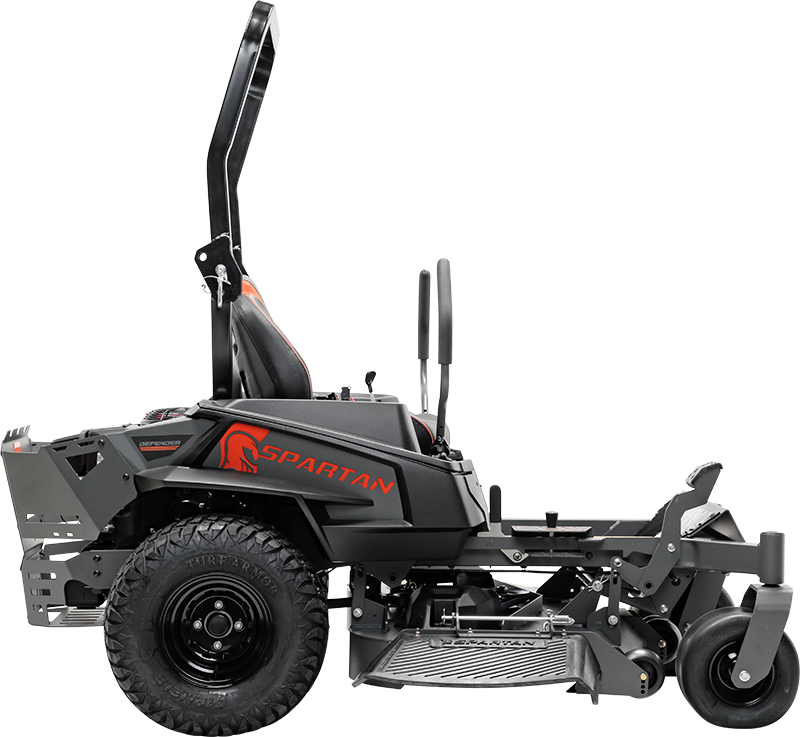

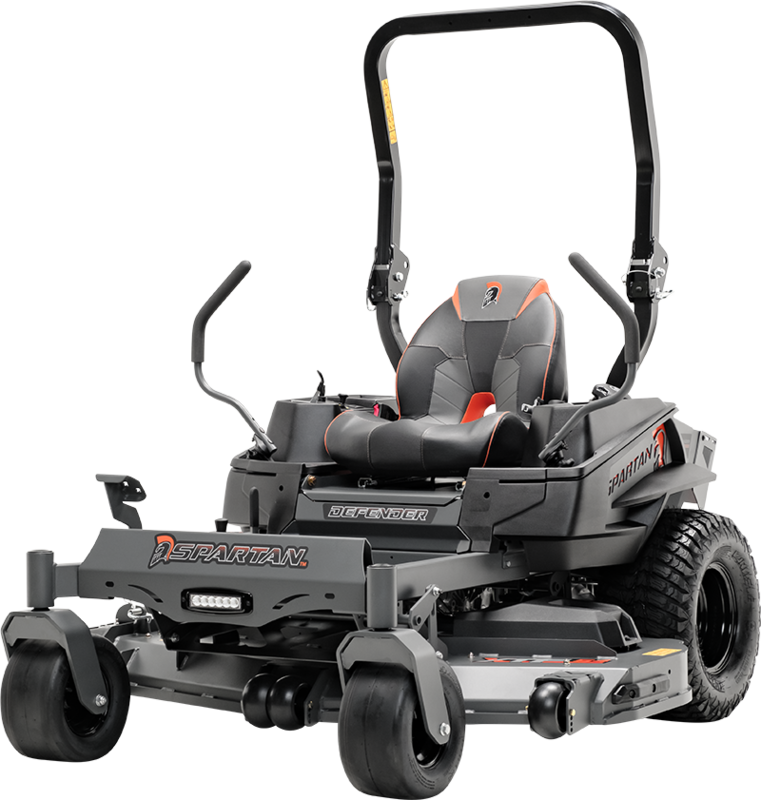

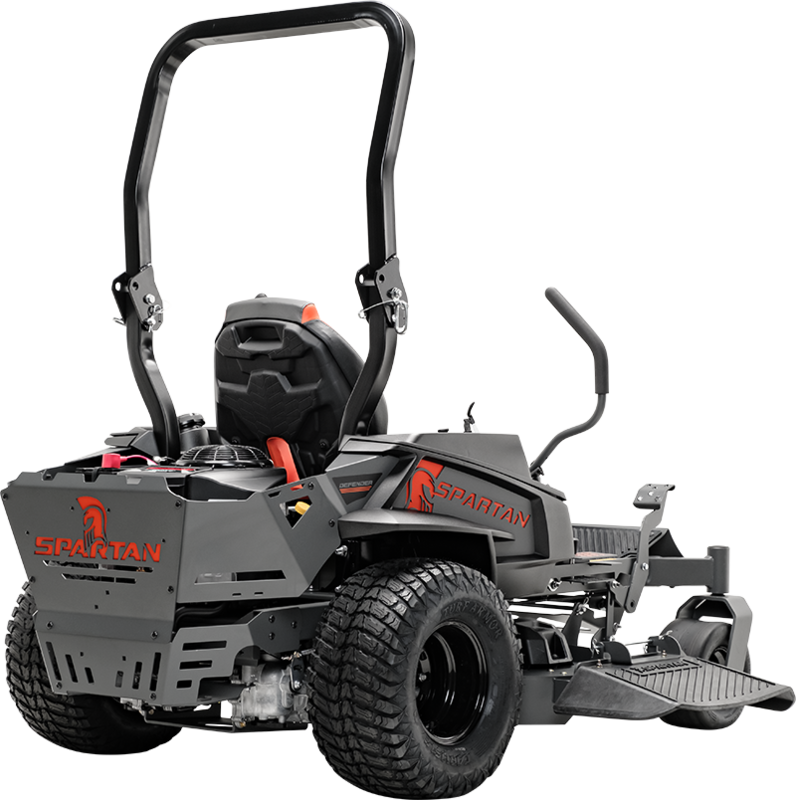

Defender
The all-new Defender features folding ROPS, full-beam LED light kit, 22” Carlisle Turf Armor rear tires, and a top speed of 8 MPH.
Payments as low as:
$129/ mo
Starting at:
$6,379
- Deck Sizes: 48″ / 54″ / 60″
- Horsepower: 23 / 24 HP
- Deck Height: 4.5
- Top Speed: 8 MPH
- Fuel Capacity: 5 Gal
Specifications

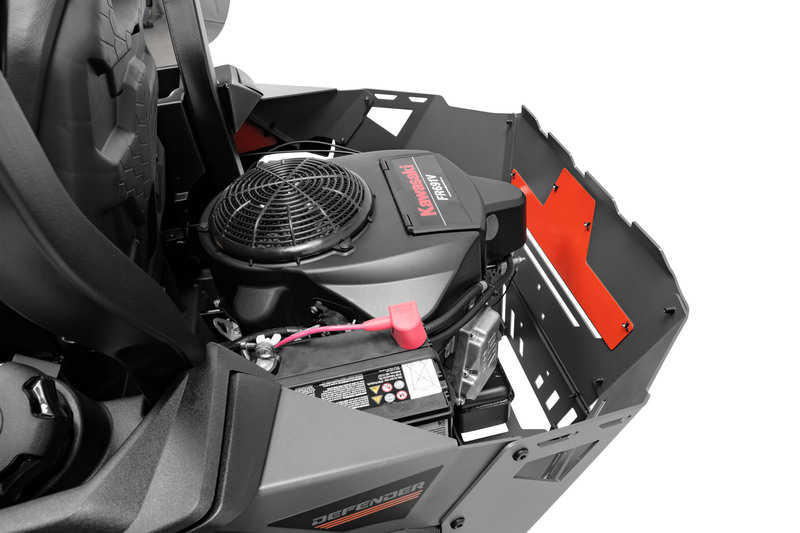

Engine
Fuel Capacity: 5 Gallons
Drive Line
Hydraulic Drive: Hydro-Gear ZT-2800
Front Tires: 13″ Bias Ply

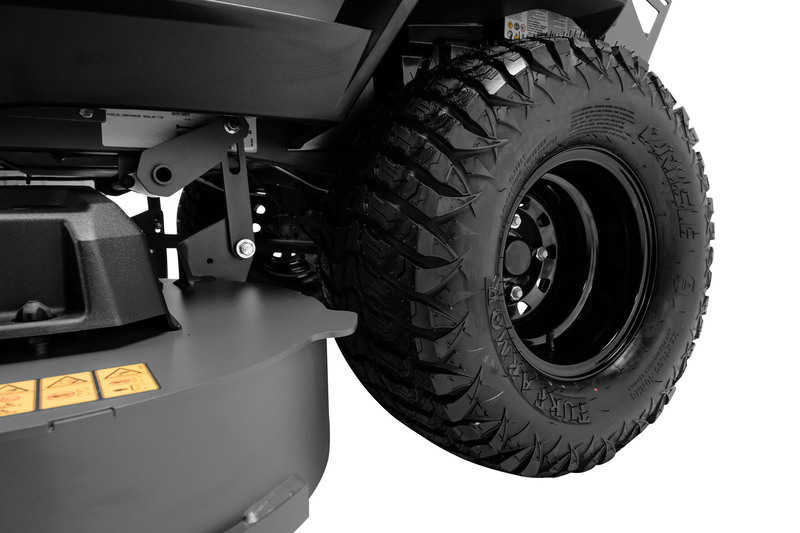

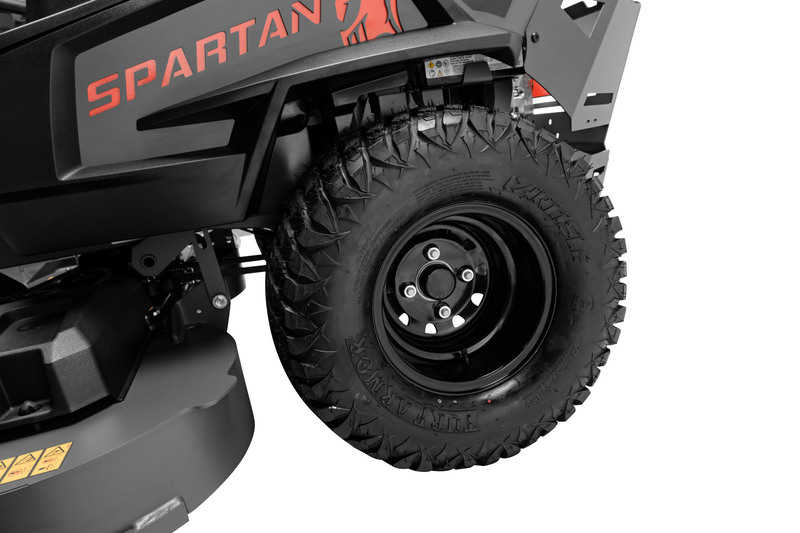

Drive Tires: 22″ Carlisle Turf Armor
Wheel Type: Steel
Speed (F/R): Forward – Up to 8 mph / Reverse – Up to 5 mph
Features
Recommended Acreage: 3+

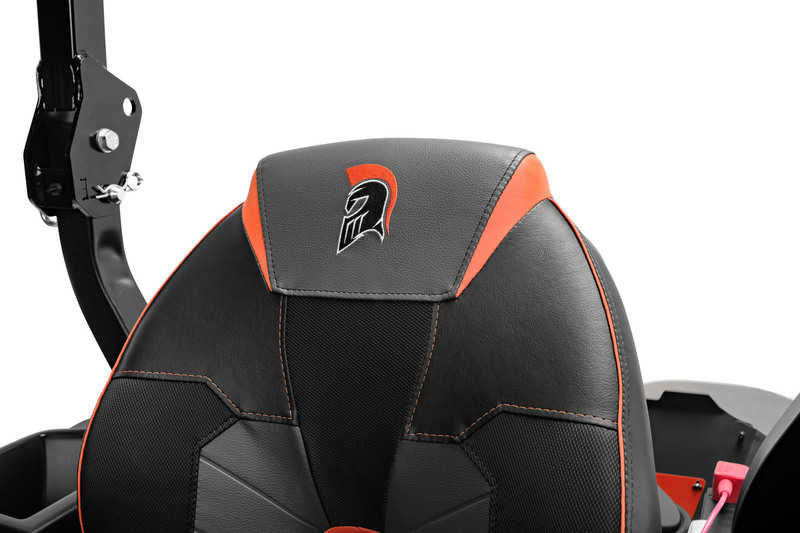

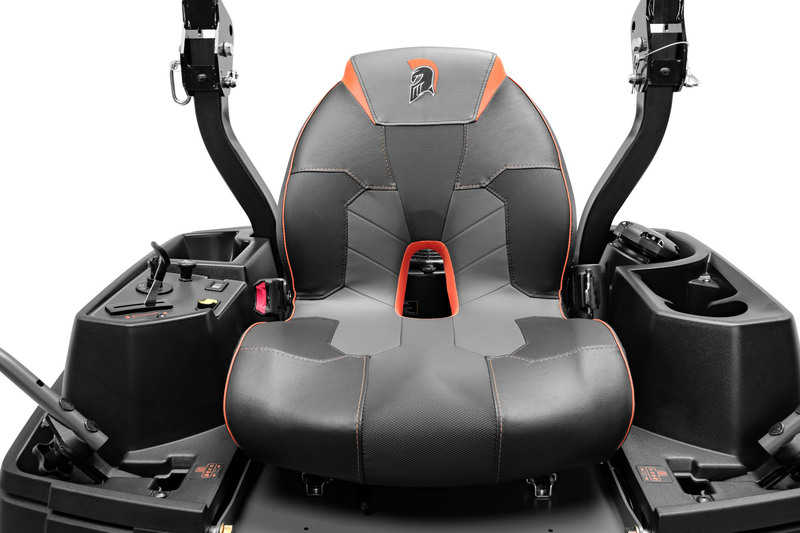

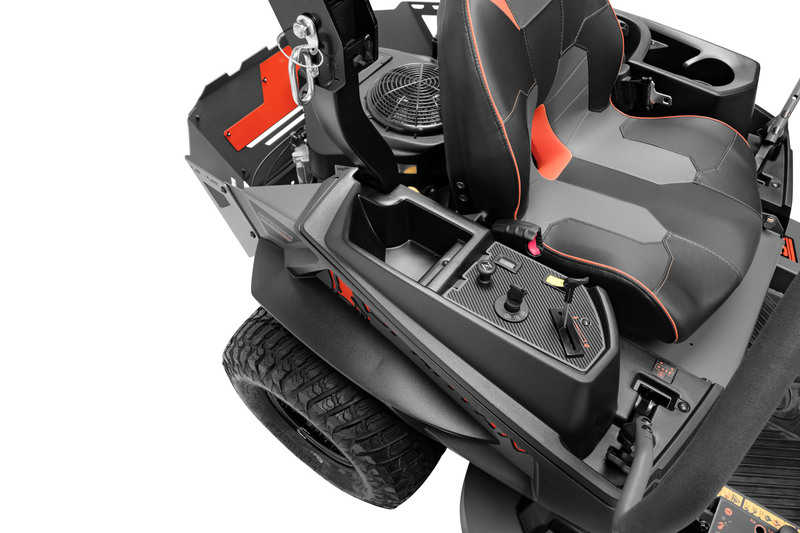

Seat: Premium
Steering Levers: Adjustable Up and Down

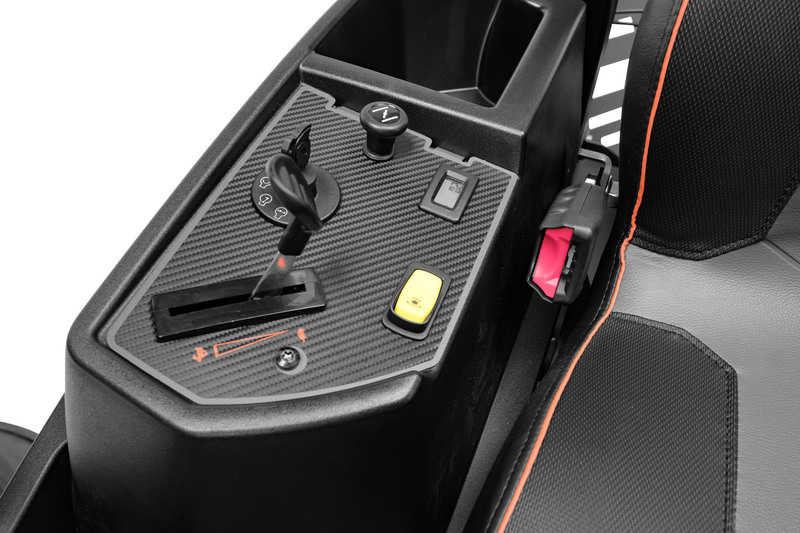

Ignition: Key Switch
Control Panel LCD Display: N/A
Control Panel LED Warning Indicators: N/A
Cutting Deck
Deck Sizes: 48″ or 60″
Deck Depth: 4.5″
Deck Lift: Foot Operated

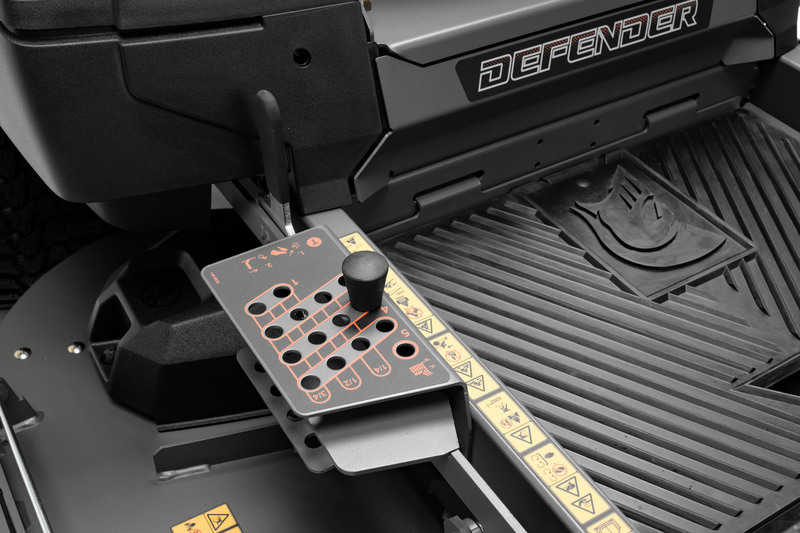

Deck Adjustment: Magnetic Pin Height Adjustment
Cut Height (48″): 1″ to 4.25″ with 12 Cut Heights
Parking Brake: Automatic
Measurements
Width: 48″ Deck – 43.5″ Wide / 60″ Deck – 61.5″ Wide
Weight: 765 – 862 lbs
Length: 81″
Height: 46″
Warranty
Full Warranty: 3 Year / 300 Hour – 120 Day Belt Warranty
Engine Warranty: 3 Year
Deck Warranty: Lifetime on Leading Edge
Hydraulic Drive Warranty: 3 Year / 300 Hour
Control Panel Warranty: N/A
Advantages & Features
HD Fusion Welded Frames
The frames on RZ-C models and up are constructed from heavy-duty 3″ x 1.5″ 11-gauge tube steel. Without a doubt, Spartan Mowers are built tough.

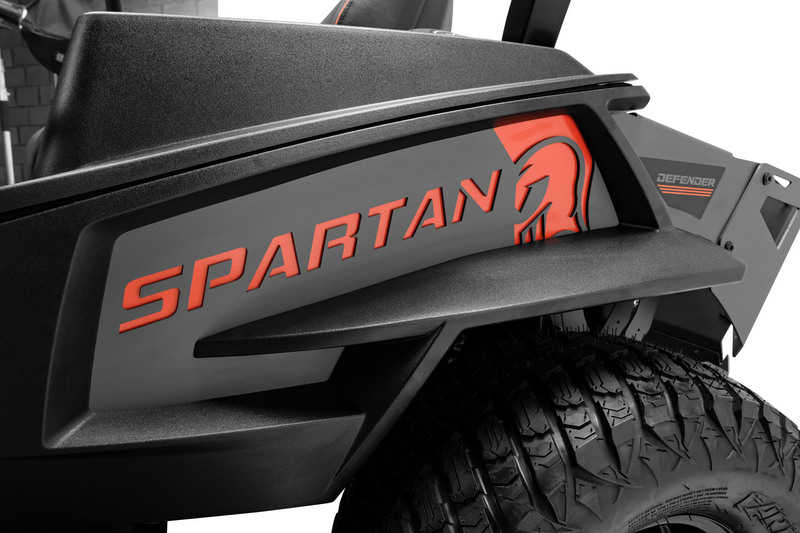

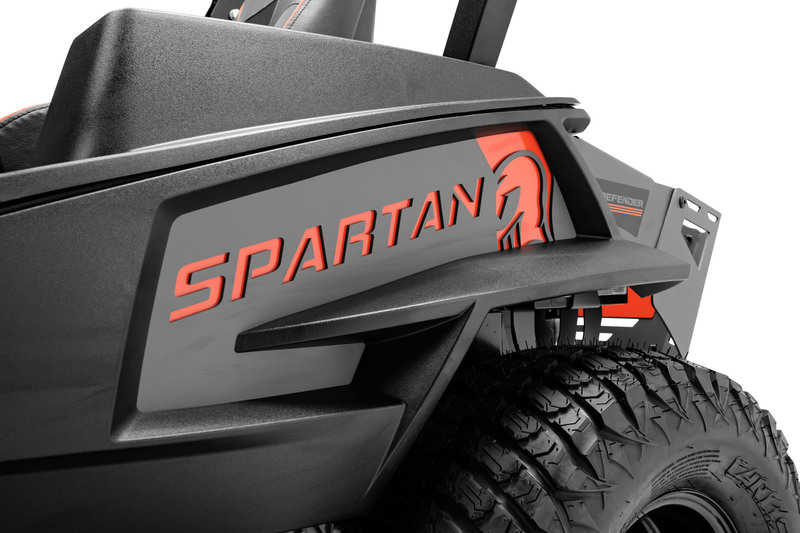

Design & Style
Our passion for muscle cars from the late ’60s has fueled the design of Spartan Mowers. Mow in style and turn heads with the stealthy profile of a Spartan.

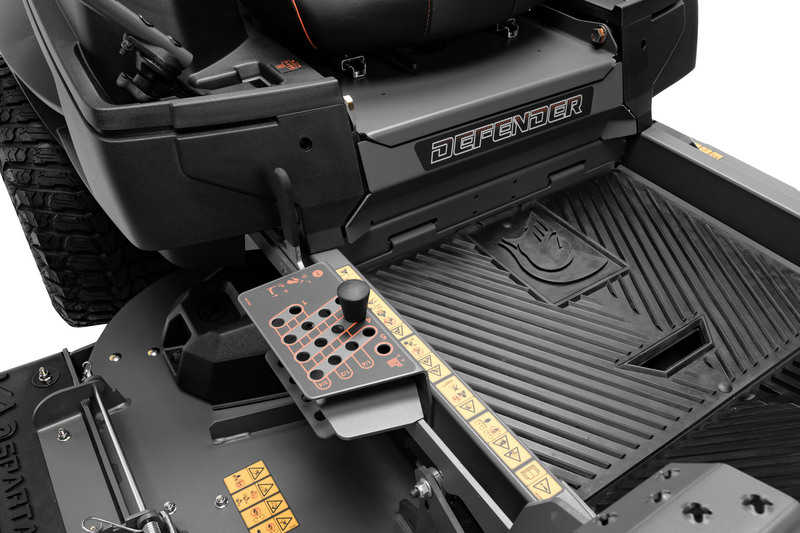

Adjustable Steering Arms
Adjustable steering arms add comfort for the best fit while mowing. *Standard on the RZ-HD Blackout and up. Available upgrade on the RZ-C, RZ, RZ-Pro, & RZ-HD.

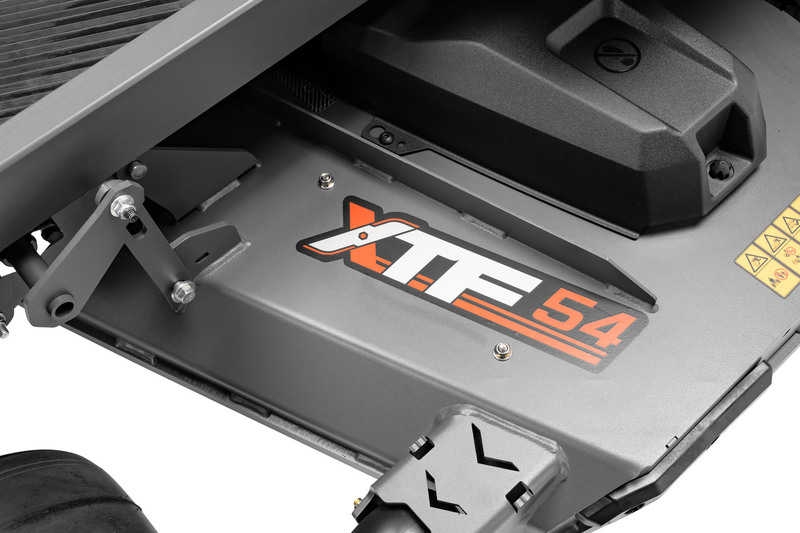

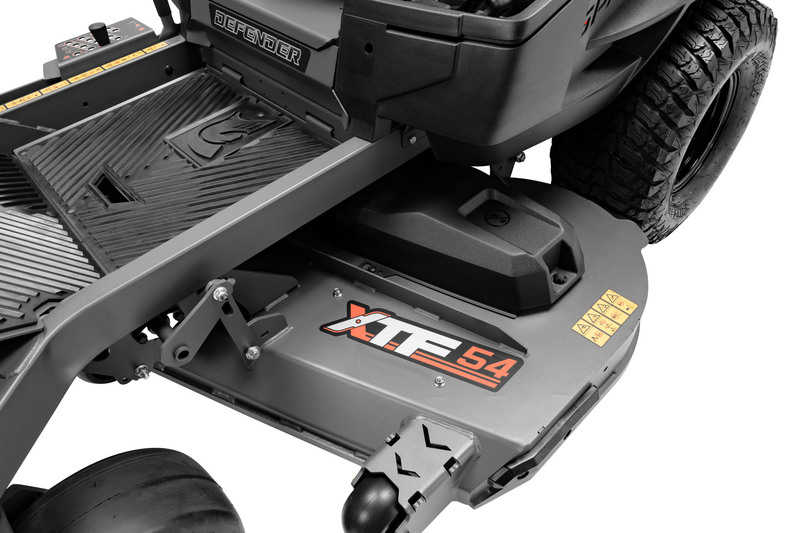

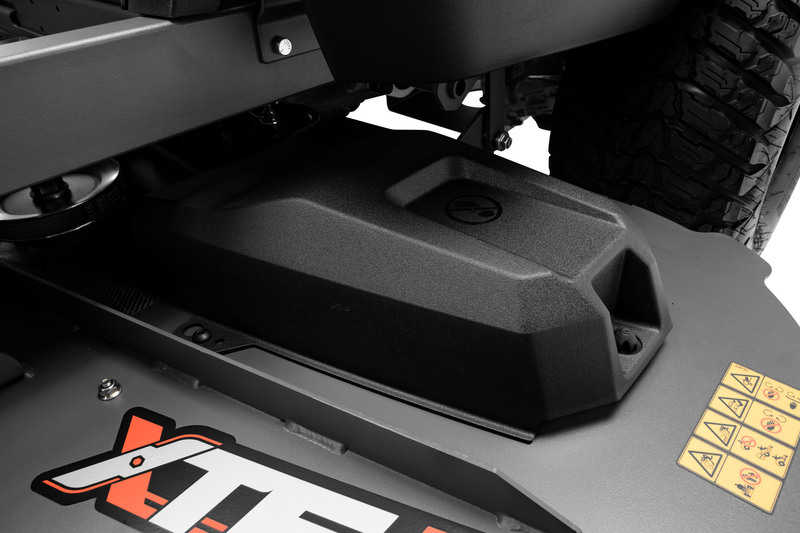

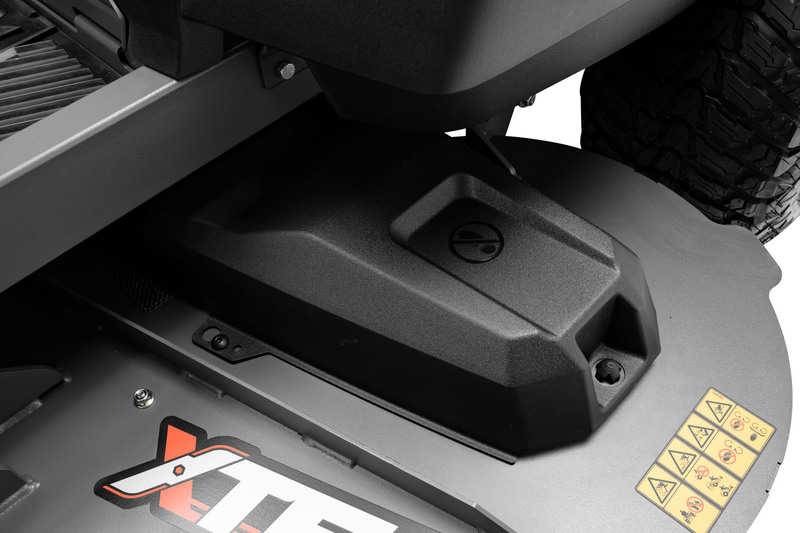

Enhanced XTF Deck System
Our Xtreme Turf Flow (XTF) decks have been redesigned and enhanced to meet the spring, summer, and fall mowing conditions everywhere. This enhanced deck system is available on all models from the Defender up.

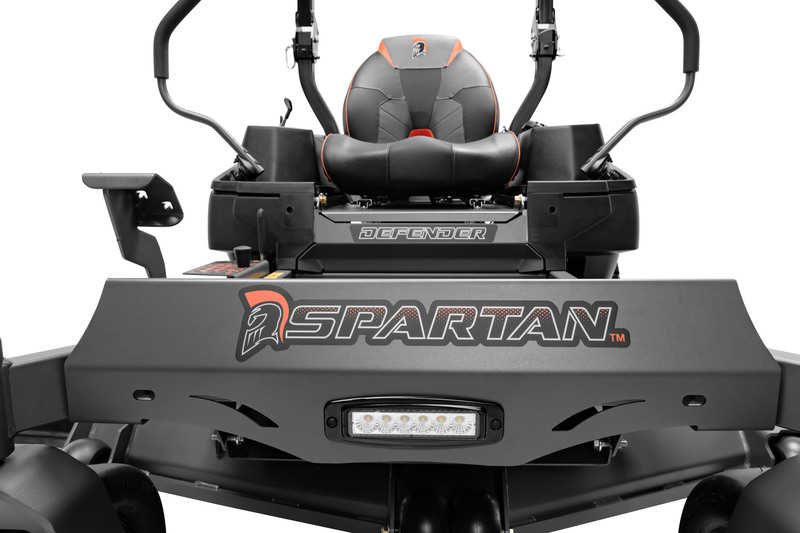

LED Light Kits
Mounted directly to the front of the mower, an LED light bar is great for finishing up at dusk and lighting the way to your trailer or shed. Light bars are standard on Spartan’s RZ-HD Blackout, RT-HD, SRT series, KG-XD, and KGZ-XD models. *Available upgrade on RZ-C, RZ, RZ-Pro, and RZ-HD.
U.S.A.
Defender models and up are made with U.S. and global parts at our facility in Batesville, Arkansas. We’re proud of our hardworking team and community.
High Quality Parts
Commercial-grade DNA is a key characteristic of Spartan Mowers, so our models feature the same heavy-duty components across the lineup.

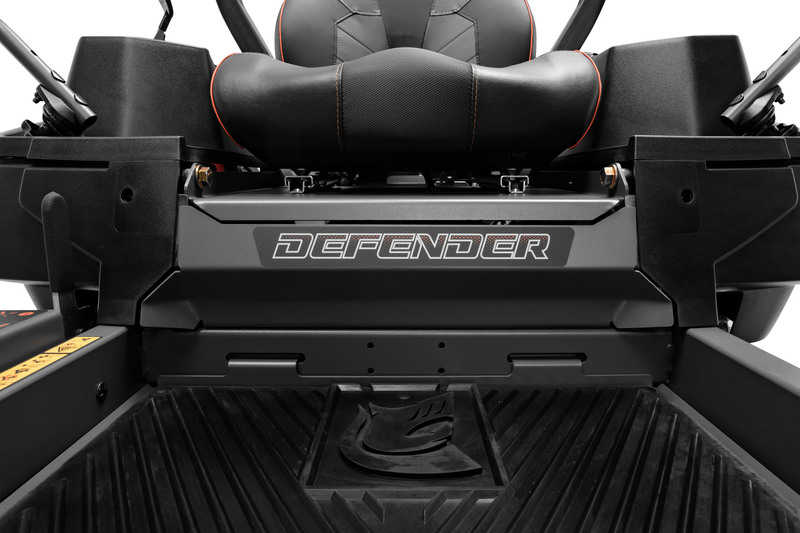

Anti-Slip Mat
All models are equipped with a rubber anti-slip foot mat that helps reduce vibration from the transmission to the operator’s foot.
EZ Debris Removal
To help keep your machine cleaner after each use, our belt covers are open in all directions for easy removal of accumulated debris.
All Features:
- 1 1/2″ x 3″ Tubular Welded Frame
- Magnetic Pin Height Adjustment
- Key Switch Panel
- Foot Operated Deck Lift
- Automatic Parking Brake
- Hydro-Gear ZT-2800 Transmission
- 5 gal Fuel Capacity
- 4.5″ Deck Height
- 18,500 FPM Blade Tip Speed
- Protective Side Deck Trim
- Folding ROPS
- 3-year Warranty
- Adjustable Steering Arms
Call us today to order your mower or fill out the quick form on this page to have our sales rep reach out to you about your order.
